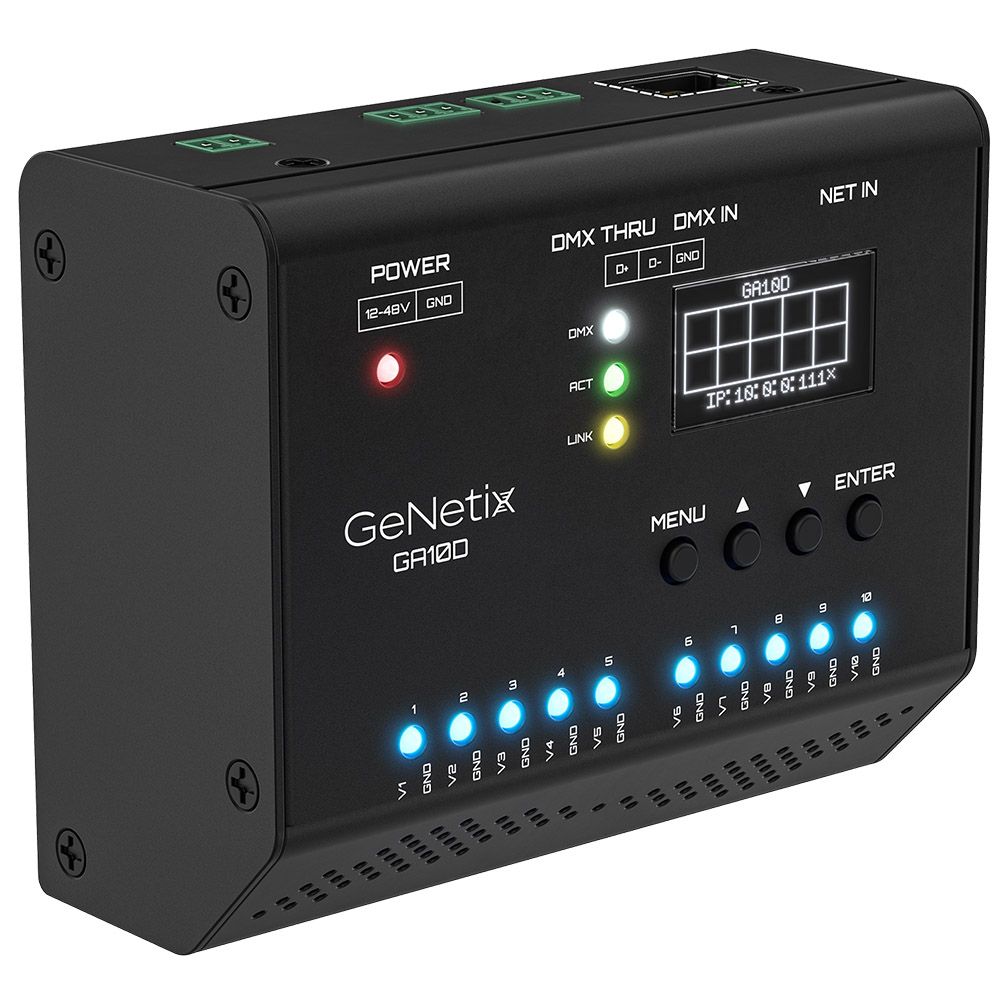

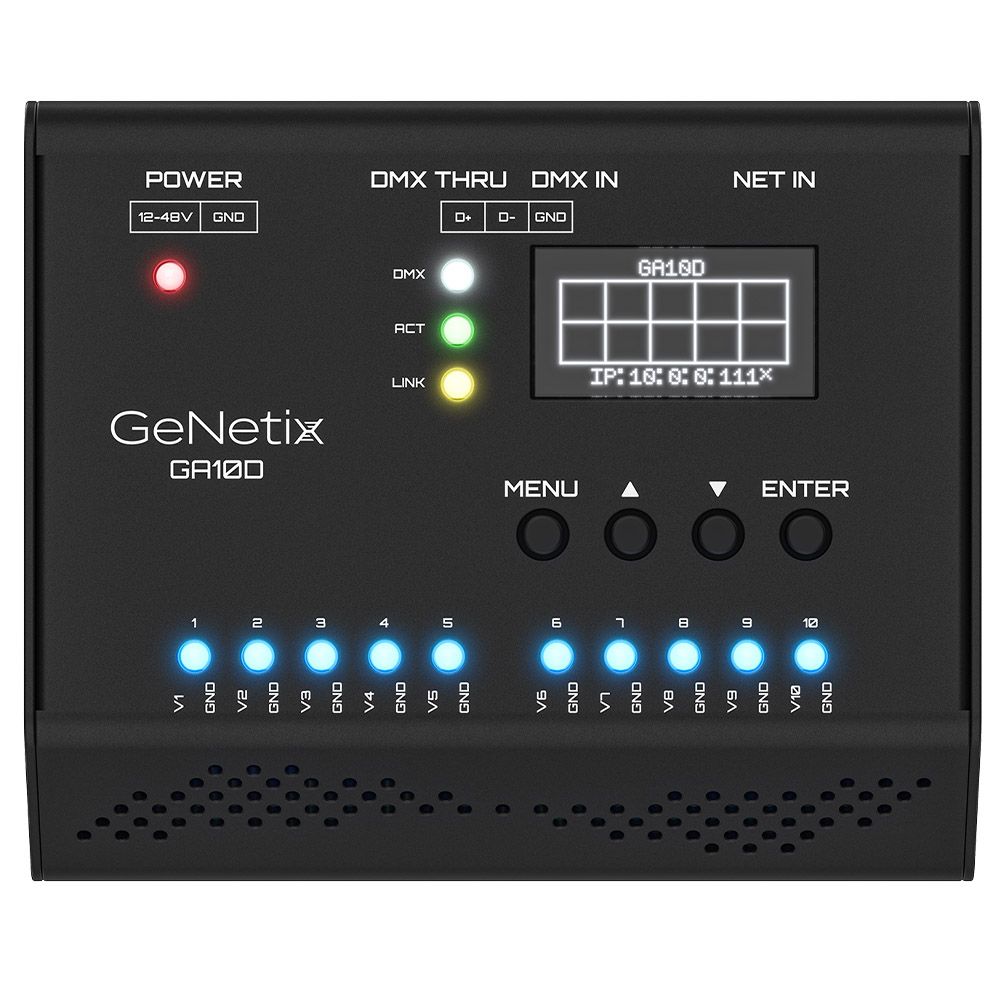

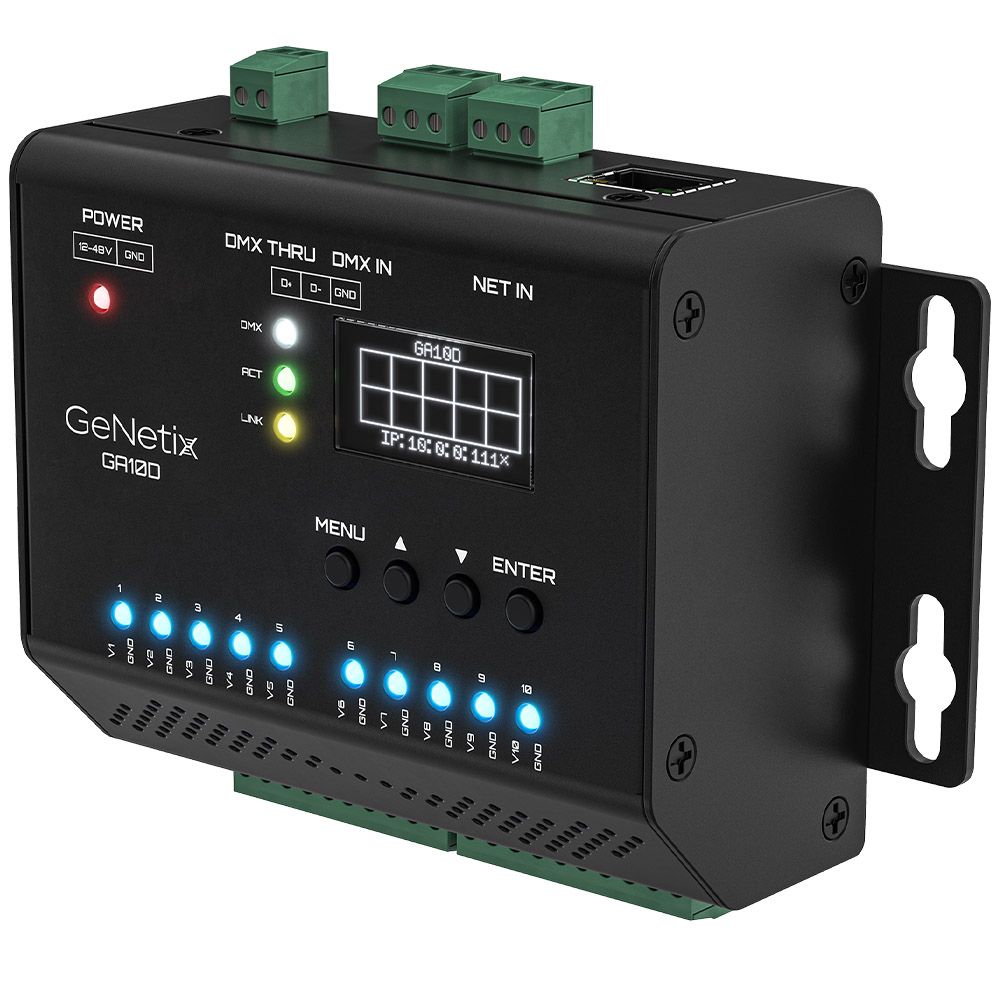

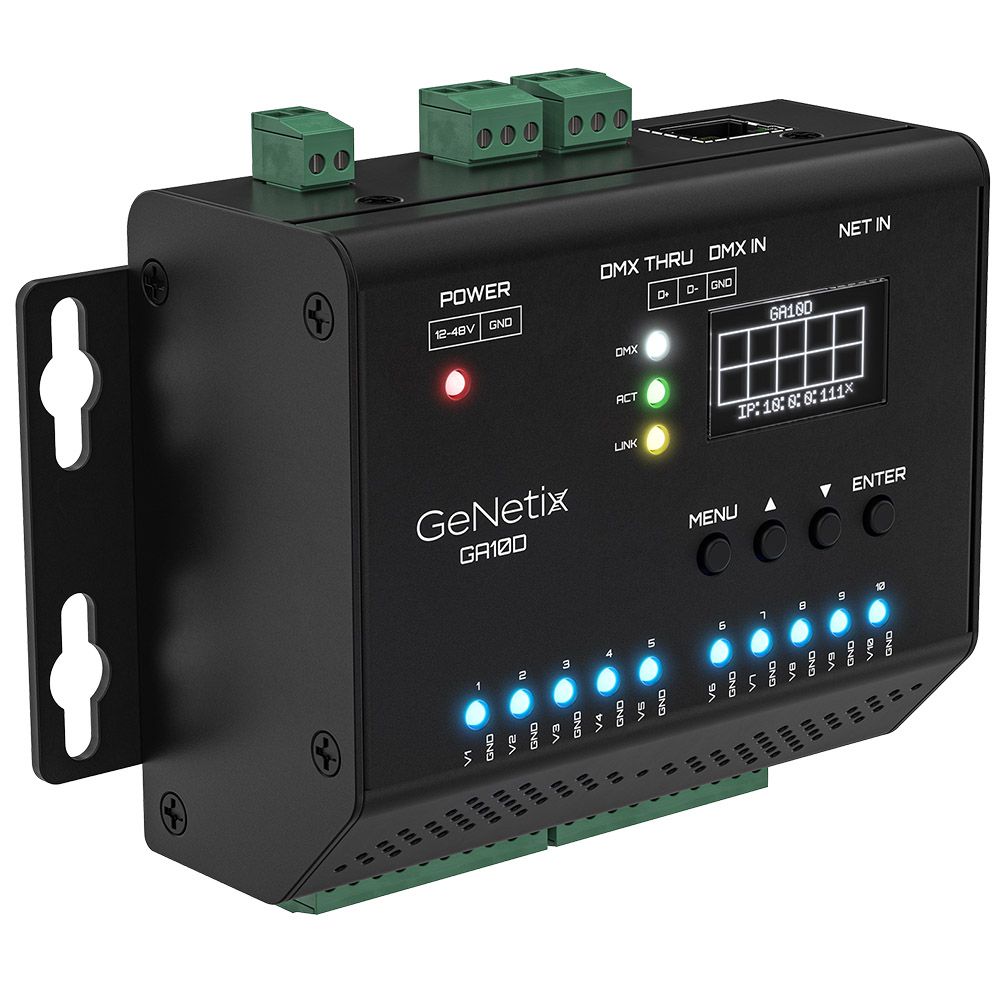

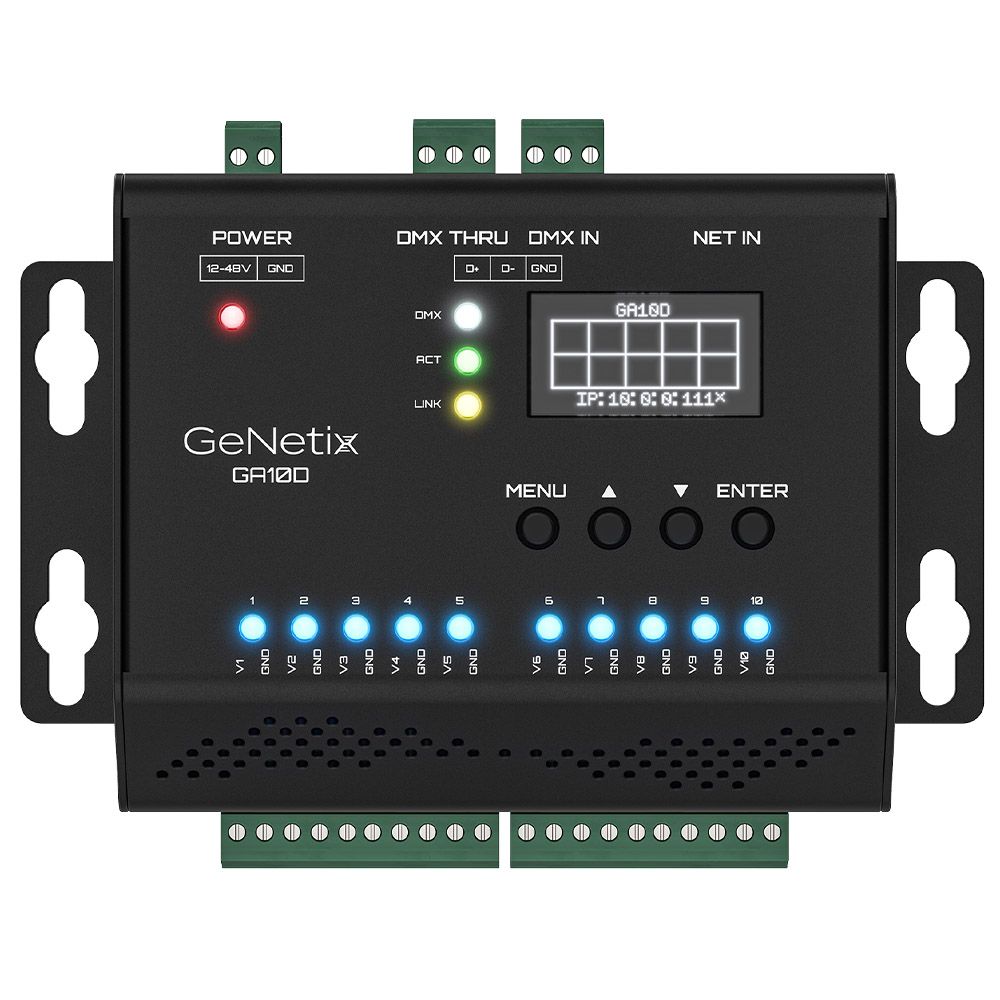

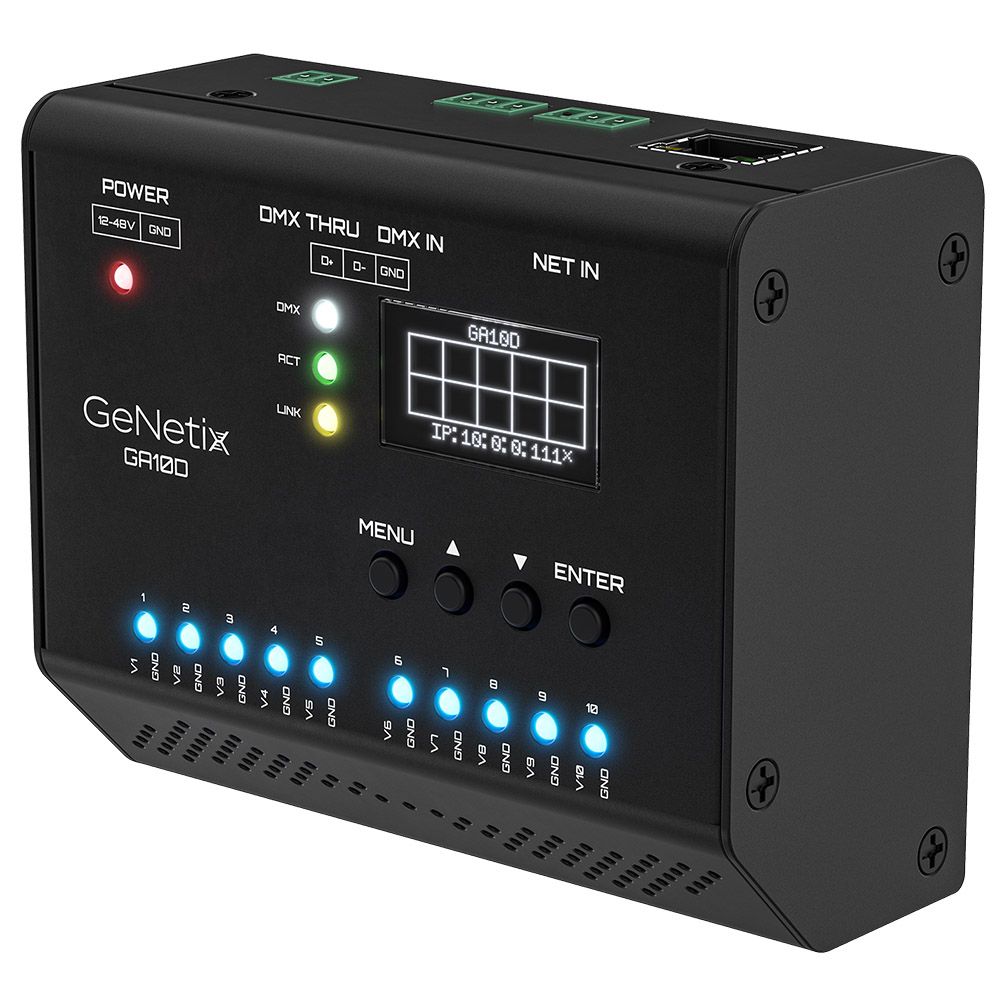

Chamsys GA10D GeNetix DIN Rail DMX to 0-10V Converter
The Chamsys GeNetix GA10D converts DMX, Art-Net and sACN data into ten analogue control outputs for permanent installations. DIN rail mounting keeps the unit suited to organised control systems. Meanwhile, Phoenix screw terminals provide the connections for DMX in/through and 0-10V output.
Ten Analogue Outputs
Ten 0-10V analogue outputs give the converter plenty of connection points for compatible control equipment. Each output uses a Phoenix screw terminal, and the 20mA per port rating defines the available output specification clearly for installation planning and wiring.
Flexible Control Inputs
Choose the input format that matches the control system: DMX, Art-Net or sACN are supported, with a DMX in and through option also available. That range of connections makes it easier to place analogue outputs where networked or DMX-based control data is already in use.

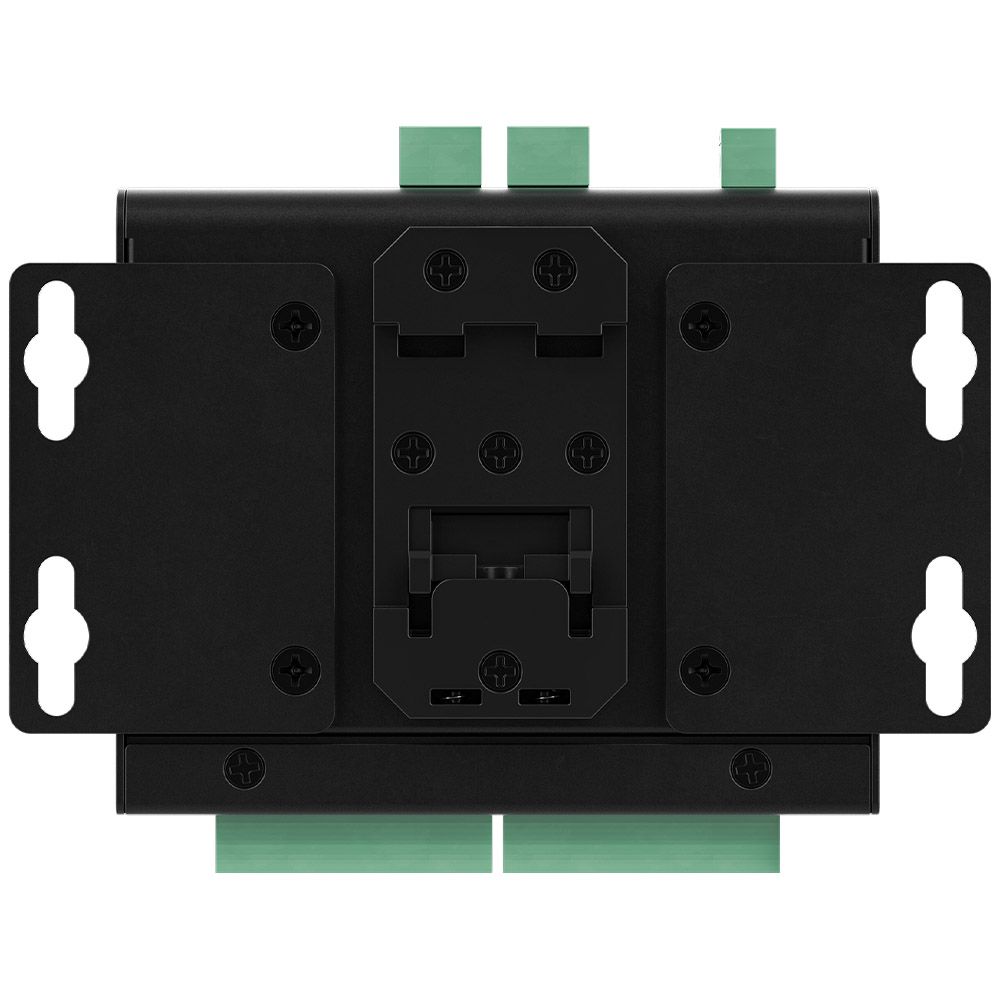

Made for DIN Rail Systems
The DIN rail-mounted design suits permanent installations where tidy, structured equipment placement matters. The unit measures 104mm wide, 87mm deep and 65mm high including the DIN clip, keeping its physical footprint clear when planning space inside an enclosure or control area.
Simple Configuration and Status Checks
An onboard menu display with push-button navigation provides local unit configuration, while LEDs show output port status at a glance. The inbuilt webserver adds another documented configuration feature, and the converter is powered via an external 12-48V power supply.
Key Features
- Converts DMX, Art-Net and sACN input to 0-10V analogue control
- Offers ten individually connected analogue outputs
- Mounts directly to a DIN rail for permanent installations
- Provides local menu navigation and visual output status indication
