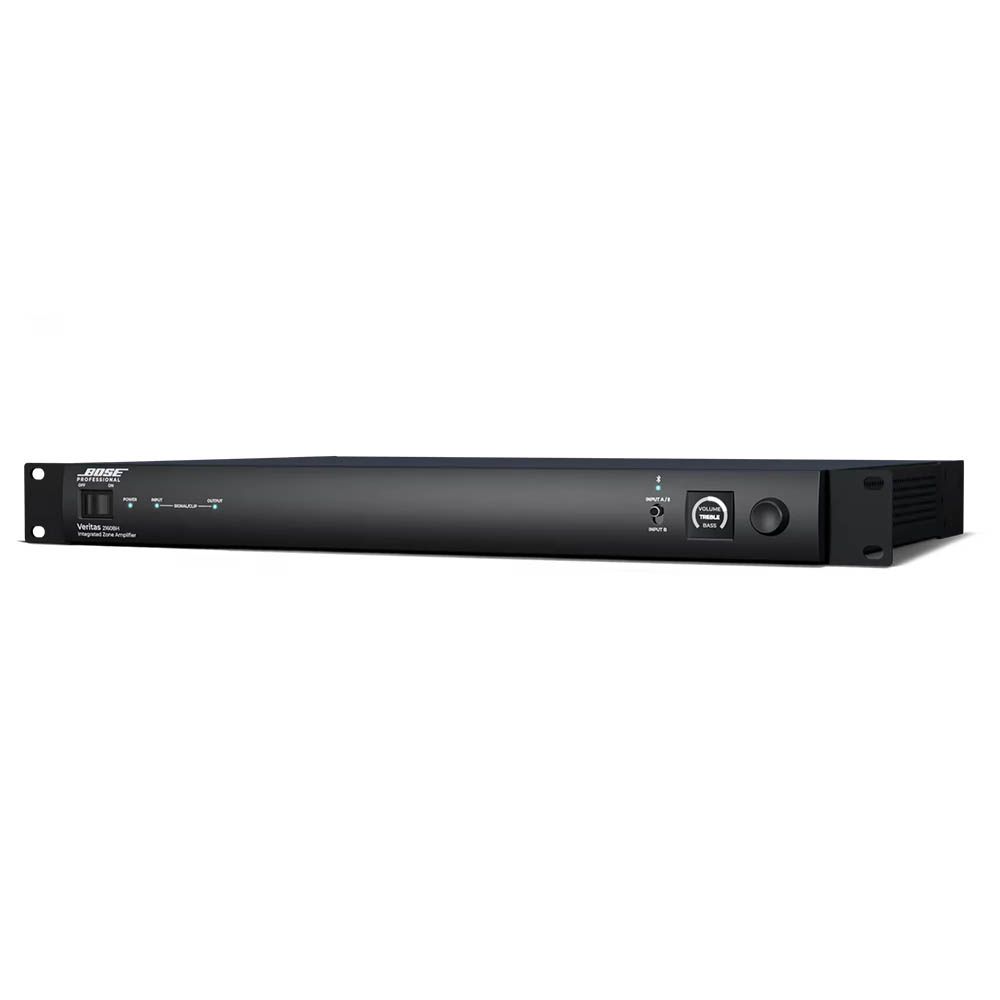

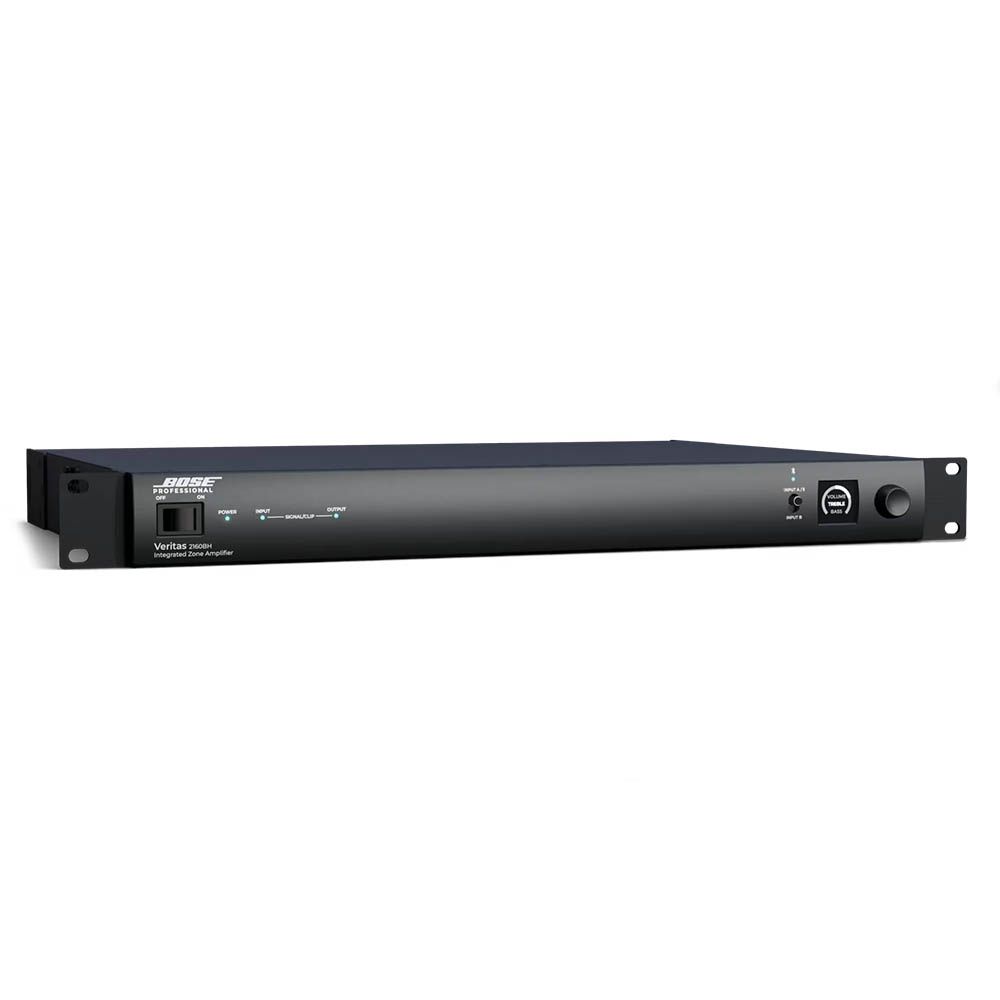

Veritas 2160BH Mixer Amplifier
- Delivers premium amplification with advanced DSP for optimized performance
- Provides Bluetooth and RCA connectivity without requiring wire splicing
- Features an intuitive front-panel OLED screen for easy setup and control
- Includes an embedded quick-start QR code in the OLED screen to simplify installation
- Supports high-impedance 70V and 100V applications
- Provides multi-zone flexibility with support for up to two independent zones
- Supports remote level control with Bose Professional or third-party wall controllers
- Uses Dynamic EQ to adjust bass levels for a fuller sound even at low volumes
- Offers up to 30 selectable EQ presets for Bose Professional signature sound performance and long-term reliability
- Features Opti-Voice paging for clear speech intelligibility

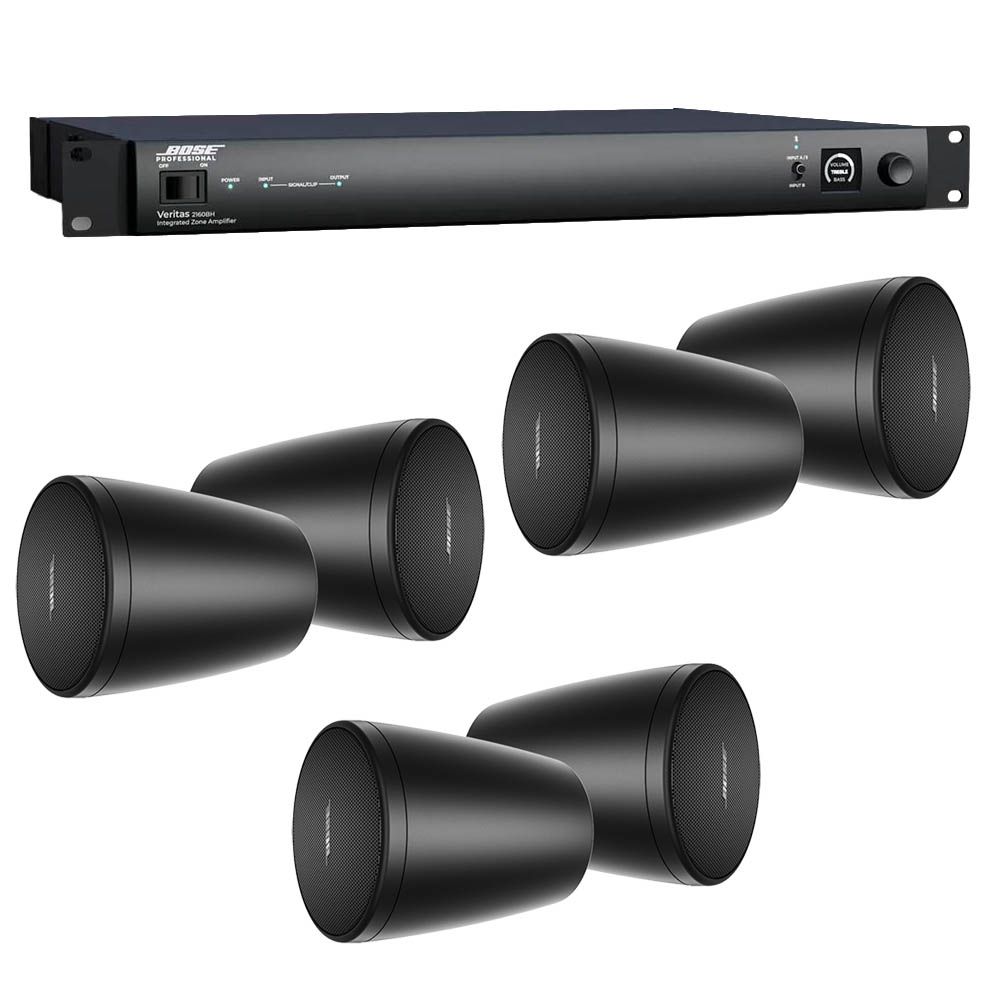

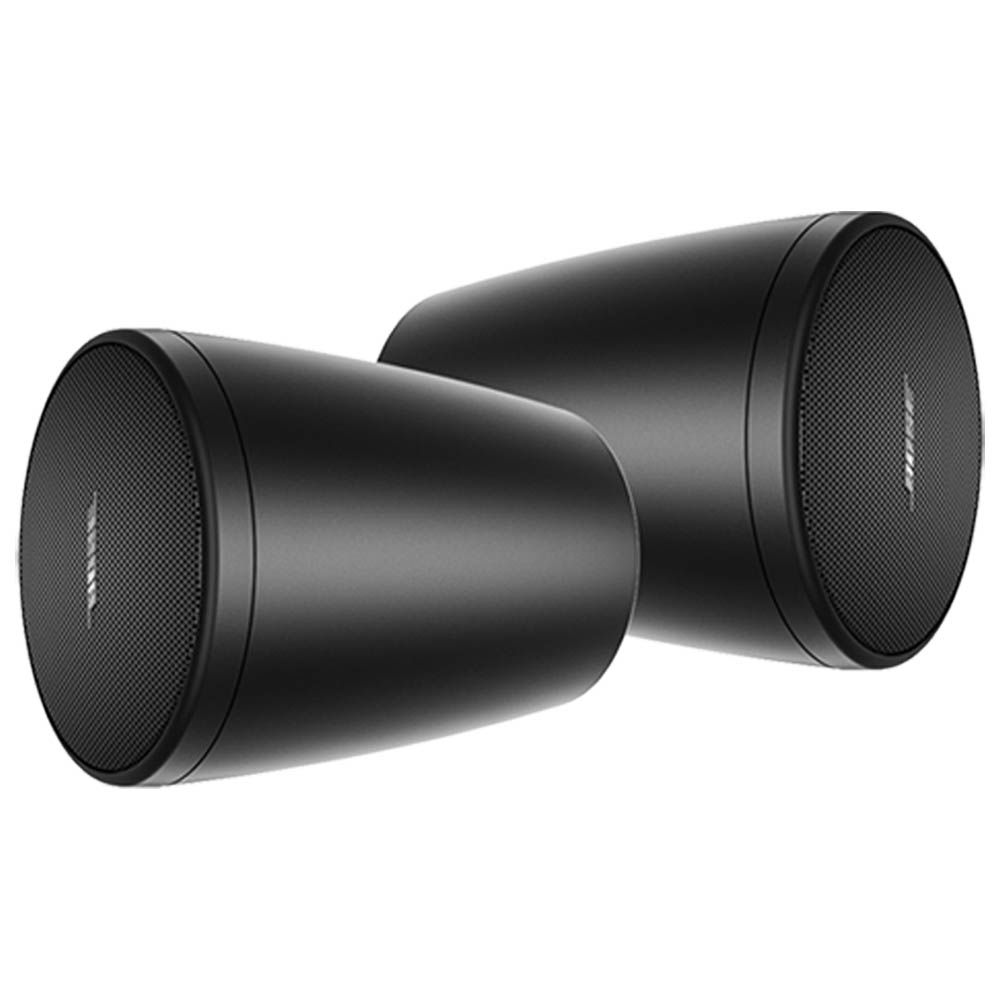

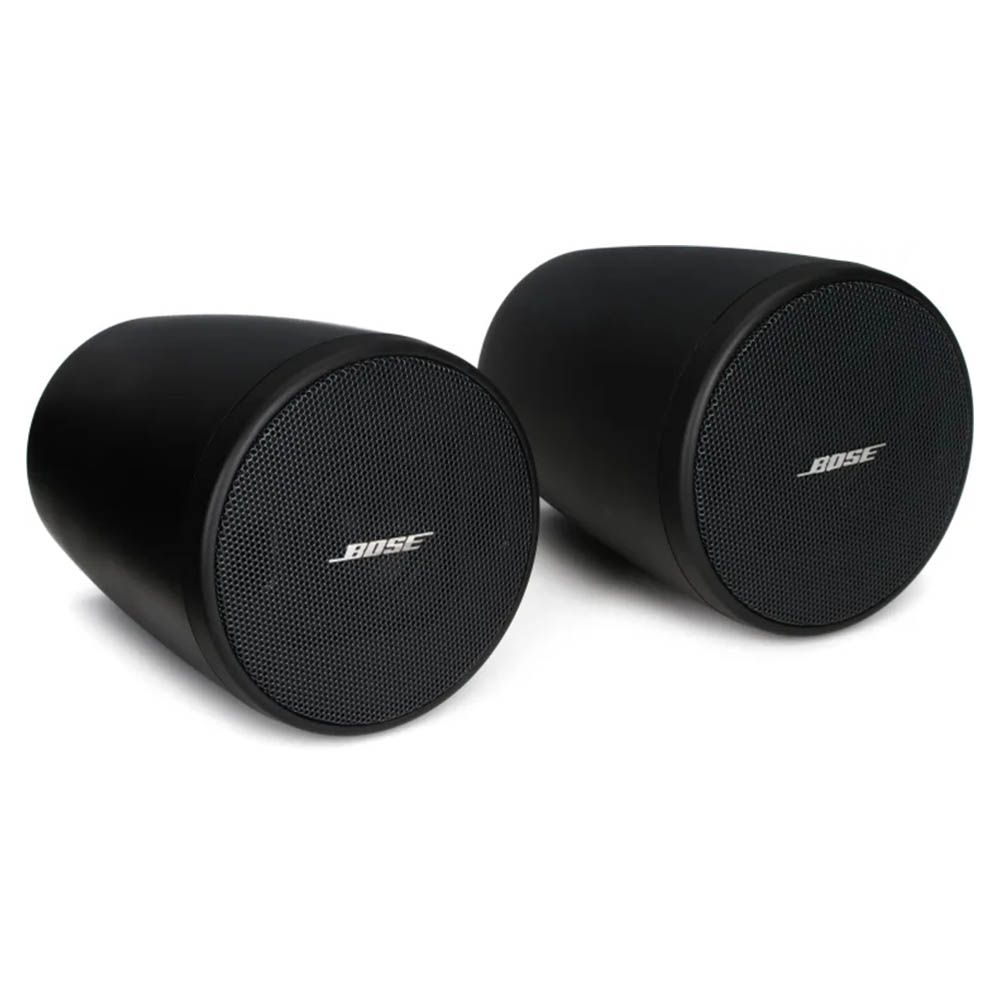

FreeSpace FS2P Pendant-Mount Loudspeakers
- Maintains consistent tonal quality with shared voicing across all FS models
- Delivers clear voice reproduction and smooth response for background music
- Provides in-ceiling, surface-mount, and pendant-mount options for tailored mix-and-match installations
- Supports expanded system designs with DesignMax subwoofers and larger models
- Features updated black and white enclosures that blend with a range of room designs
- Includes removable logos for a clean, modern appearance
- Offers a full suite of accessories to support a wide range of applications and mounting options
- Simplifies installation with Euroblock inputs across all models
- Features a front-baffle input location on in-ceiling models
- Supports public safety applications with EN54-24 certification for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
- Features a stylish pendant enclosure with single-point suspension for open-ceiling applications and installations requiring pendant-mount aesthetics and performance
Veritas 2160BH Mixer Amplifier
Channel Separation (Crosstalk): ≤ -58 dBu below rated power, 1 kHz
Dynamic Range: 88 dB
Frequency Response: 20 Hz – 20 kHz (+0/-3 dB) at 1 W, 1 kHz reference
Rated Power, Symmetrical: 2 x 160 W at 70/100V
THD+N: ≤ 0.5% at rated power
Input Channels: (2) balanced line, (2) unbalanced line, (1) balanced mic/line
Connectors: (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock
Input Impedance: 20 kΩ (line), 2 kΩ (page)
Input Range: -8 dBu to +22 dBu (line), -58 dBu to +12 dBu (page)
Maximum Input Level: 22 dBu (line), 12 dBu (page)
Nominal Input Level: 4 dBu (line), -38 dBu (page)
Sensitivity: -8 dBu (line), -58 dBV (page)
Channels: (2) loudspeaker, (1) unbalanced line
Nominal Output Level: 2 × 160 W at 70V/100V (loudspeaker), 2 dBu (auxiliary)
Mains Connector: IEC C14 inlet
Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
Protections: High temperature, output short circuit, excessively low/high AC line voltage
AC Power Consumption: 13.6 W standby, 500 W maximum

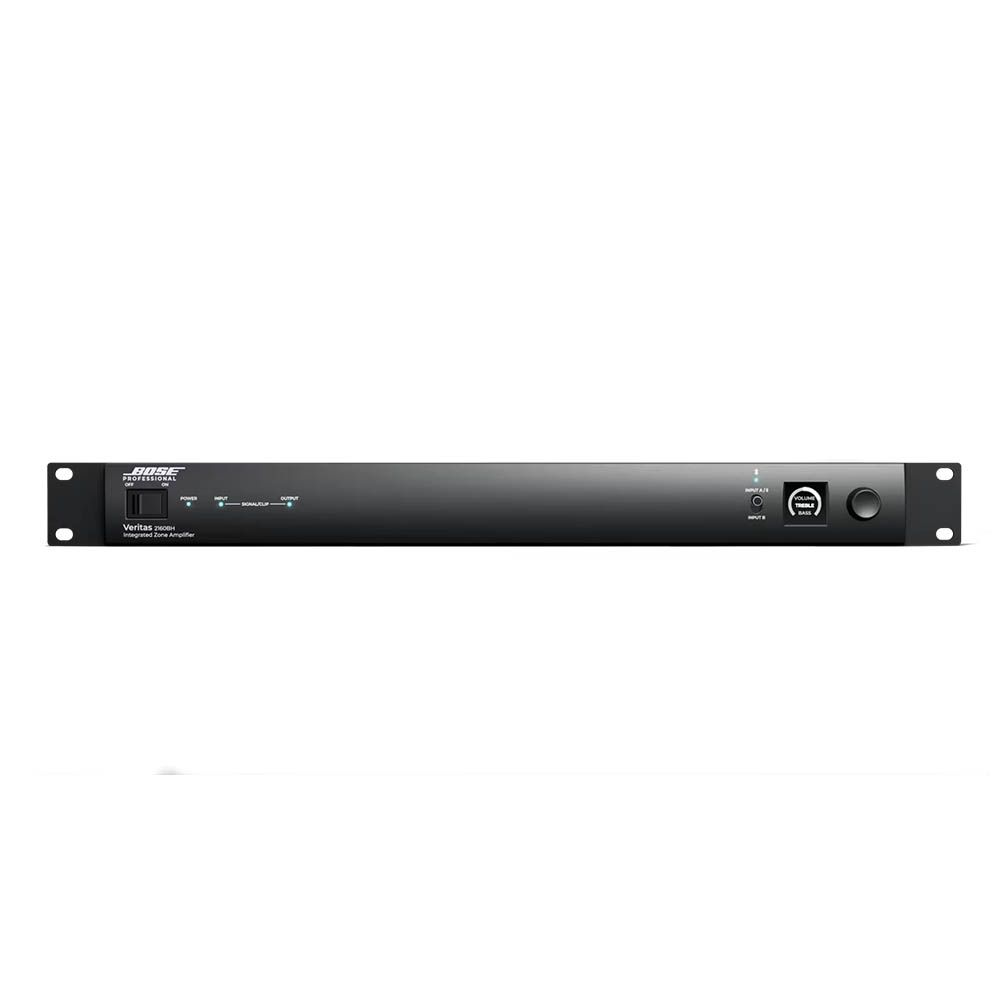

Controls, Front Panel: Power on/off switch, input select switch (A/Bluetooth/B), rotary encoder

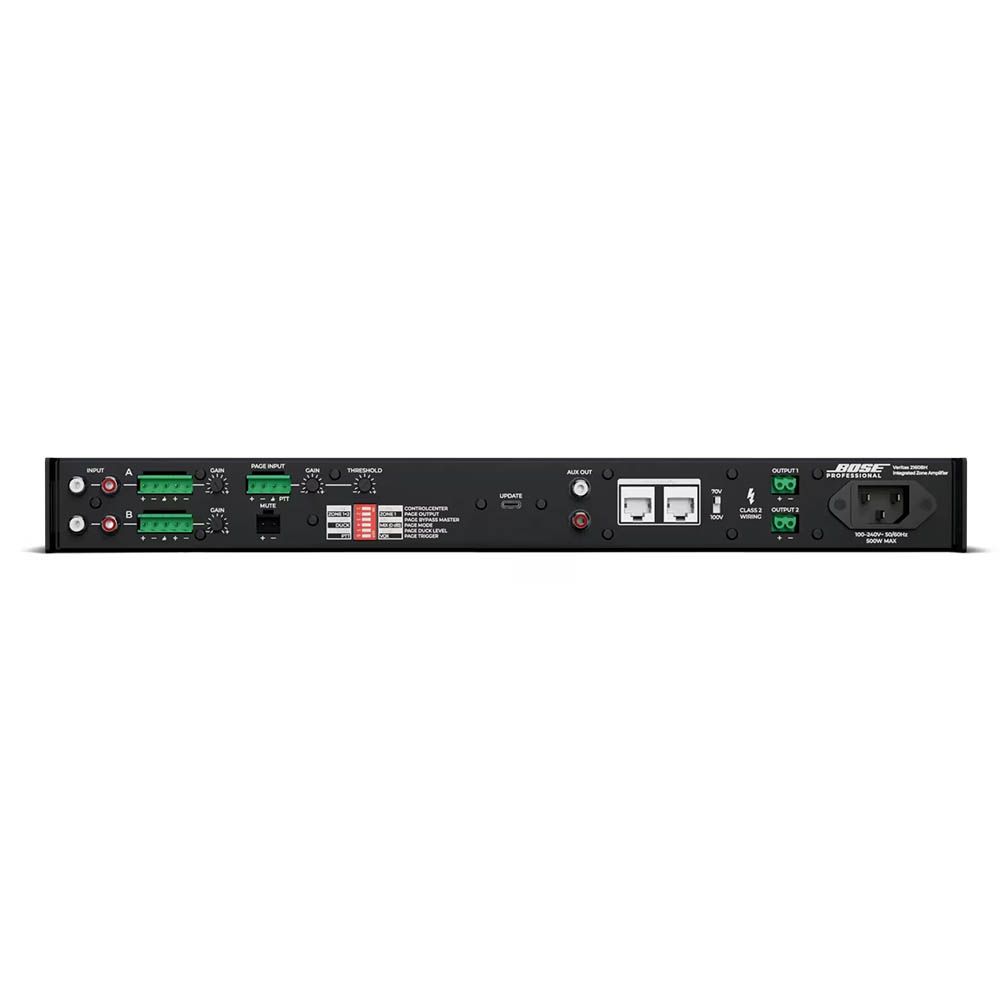

Controls, Rear Panel: Amplifier mode DIP switches, input gain knobs (A, B, page), page threshold knob, mute connector, ControlCenter ports
A/D and D/A Converters: 48 kHz / 24-bit
Audio Latency: 10.4 ms (any input to speaker output or aux output)
Presets: 70 Hz high-pass filter, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer
Processing Functions: Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
Cooling System: Fan system, left-to-right airflow
Product Dimensions (H×W×D): 44 mm × 483 mm × 324 mm (1.7 in × 19.0 in × 12.8 in)
Net Weight: 4.4 kg (9.7 lb)
Shipping Weight: 5.8 kg (12.8 lb)
FreeSpace FS2P Pendant-Mount Loudspeakers
Compliance: EN 54-24 Certified: Yes
Colors: Black (similar to RAL 9005), white (similar to RAL 9003)
Enclosure Material: Engineered plastics
Environmental: Indoor only
Grille: Perforated steel, powder-coated finish
Logo: Removable
Suspension/Mounting: 1 suspension attachment point, 1 safety cable attachment point
Operating Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)
Speaker Dimensions / Suspension Cable: 5.9 in × 7.2 in (149 mm × 183 mm), loudspeaker diameter × depth / 15.0 ft × 0.1 in (4.6 m × 2 mm), suspension cable length × diameter
Net Weight: 3.3 lb (1.5 kg), loudspeaker with grille (single)
Shipping Weight: 9.0 lb (4.1 kg), pair
Frequency Range (-10 dB): 83 – 19,000 Hz
Coverage, Horizontal: 140°
Coverage, Vertical: 140°
Calculated Maximum SPL @ 1 m: 99 dB
Nominal Impedance: 16 Ω (transformer bypass)
Power Handling, long-term continuous: 16 W
Power Handling, Peak: 64 W
Sensitivity (SPL/1 W at 1 m): 87 dB
Transformer Taps, 100V: 2, 4, 8, 16 W, bypass
Transformer Taps, 70V: 1 W, 2 W, 4 W, 8 W, 16 W, bypass
Driver Protection: Recommended high-pass protection 85 Hz with minimum 24-dB/octave filter
Low-Frequency: 1 × 2.25 in (57 mm) woofer
