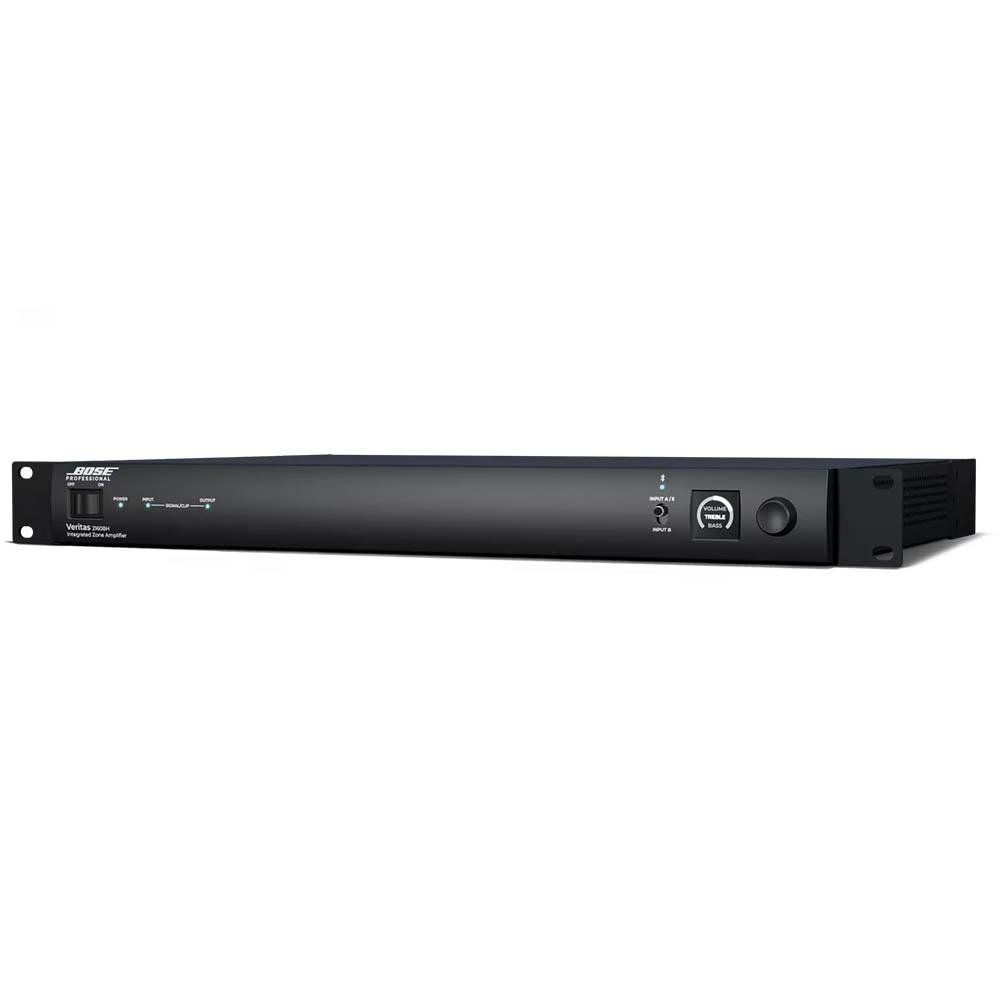

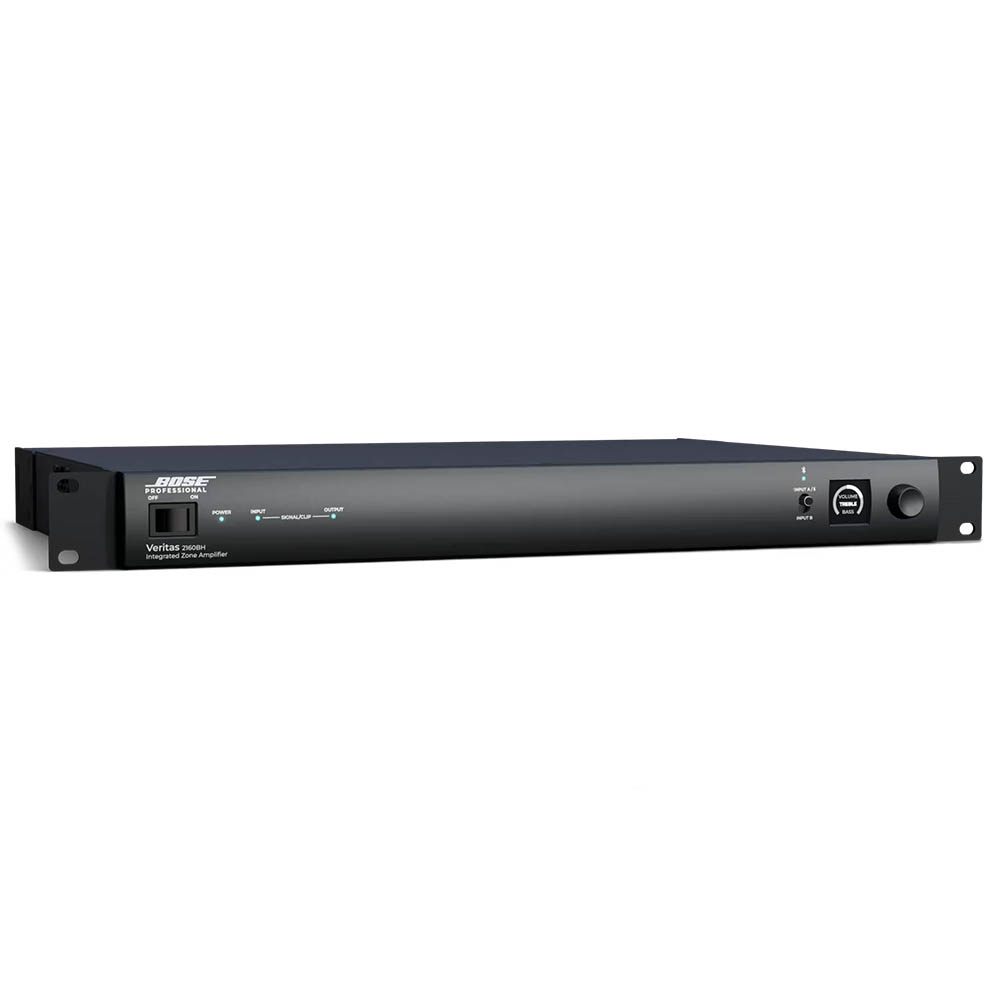

Veritas 2160BH Mixer Amplifier
- Premium amplification with advanced DSP for optimized performance
- Bluetooth connectivity and RCA connectivity—no wire splicing required
- Intuitive front-panel OLED screen for easy setup and control
- Embedded quick-start QR code in the OLED screen simplifies installation
- Supports high-impedance (70/100V) applications
- Multi-zone flexibility—support for up to two independent zones
- Remote level control with Bose Professional or third-party wall controllers
- Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes
- Up to 30 selectable EQ presets ensure Bose Professional signature sound performance and long-term reliability
- Opti-Voice paging feature ensures clear speech intelligibility

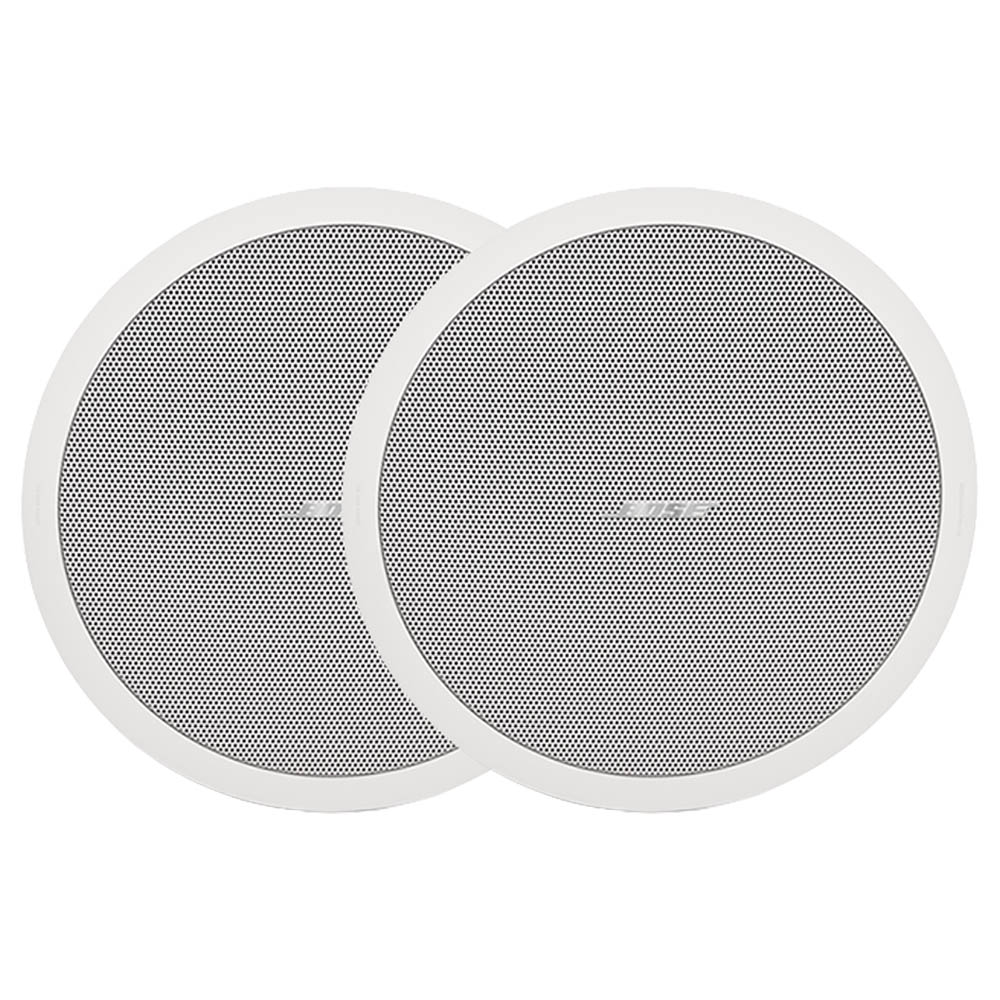

FreeSpace FS4CE Speaker
- 1 x 4.5″ full-range driver
- 200W peak power handling with 111 dB maximum SPL
- 115° conical coverage pattern
- Integrated multi-tap transformer
- Tap selection via thumbwheel
- Shared voicing across the FreeSpace FS range
- Ported enclosure
- Includes mounting hardware
Veritas 2160BH Mixer Amplifier
Channel Separation (Crosstalk): ≤ -58 dBu below rated power, 1 kHz
Dynamic Range: 88 dB
Frequency Response: 20 Hz – 20 kHz (+0/-3 dB) at 1 W, 1 kHz reference
Rated Power, Symmetrical: 2 x 160 W at 70/100V
THD+N: ≤ 0.5% at rated power
Adjustment Range: 0 dB to -30 dB (line), 0 dB to +50 dB (page)
Input Channels: (2) balanced line, (2) unbalanced line, (1) balanced mic/line
Input Connectors: (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock
Input Impedance: 20 kΩ (line), 2 kΩ (page)
Input Range: -8 dBu to +22 dBu (line), -58 dBu to +12 dBu (page)
Maximum Input Level: 22 dBu (line), 12 dBu (page)
Nominal Input Level: 4 dBu (line), -38 dBu (page)
Sensitivity: -8 dBu (line), -58 dBV (page)
Output Channels: (2) loudspeaker, (1) unbalanced line
Output Connectors: (2) 2-pin inverted Euroblock, (1) RCA stereo pair
Nominal Output Level: 2 × 160 W at 70V/100V (loudspeaker), 2 dBu (auxiliary)
Mains Connector: IEC C14 inlet
Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
Protections: High temperature, output short circuit, excessively low/high AC line voltage
AC Power Consumption: 13.6 W standby, 500 W maximum

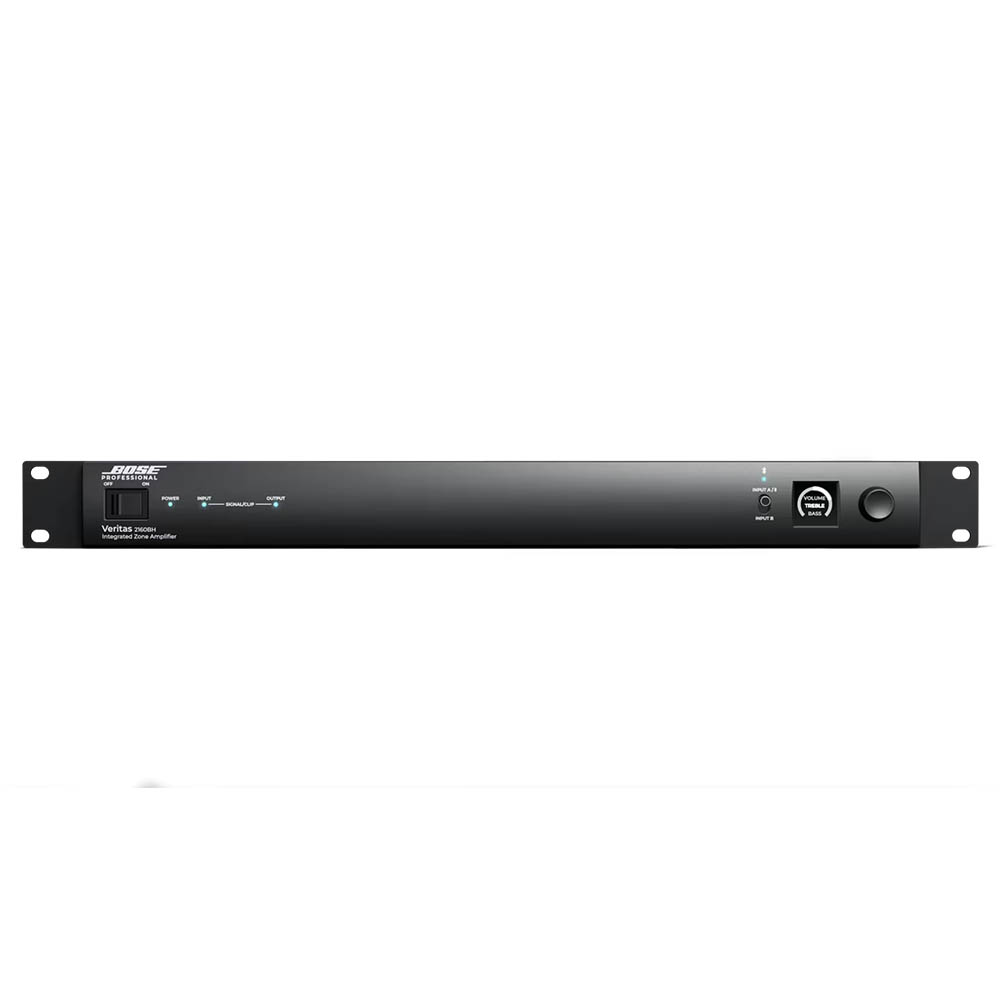

Front Panel Controls: Power on/off switch, input select switch (A/Bluetooth/B), rotary encoder

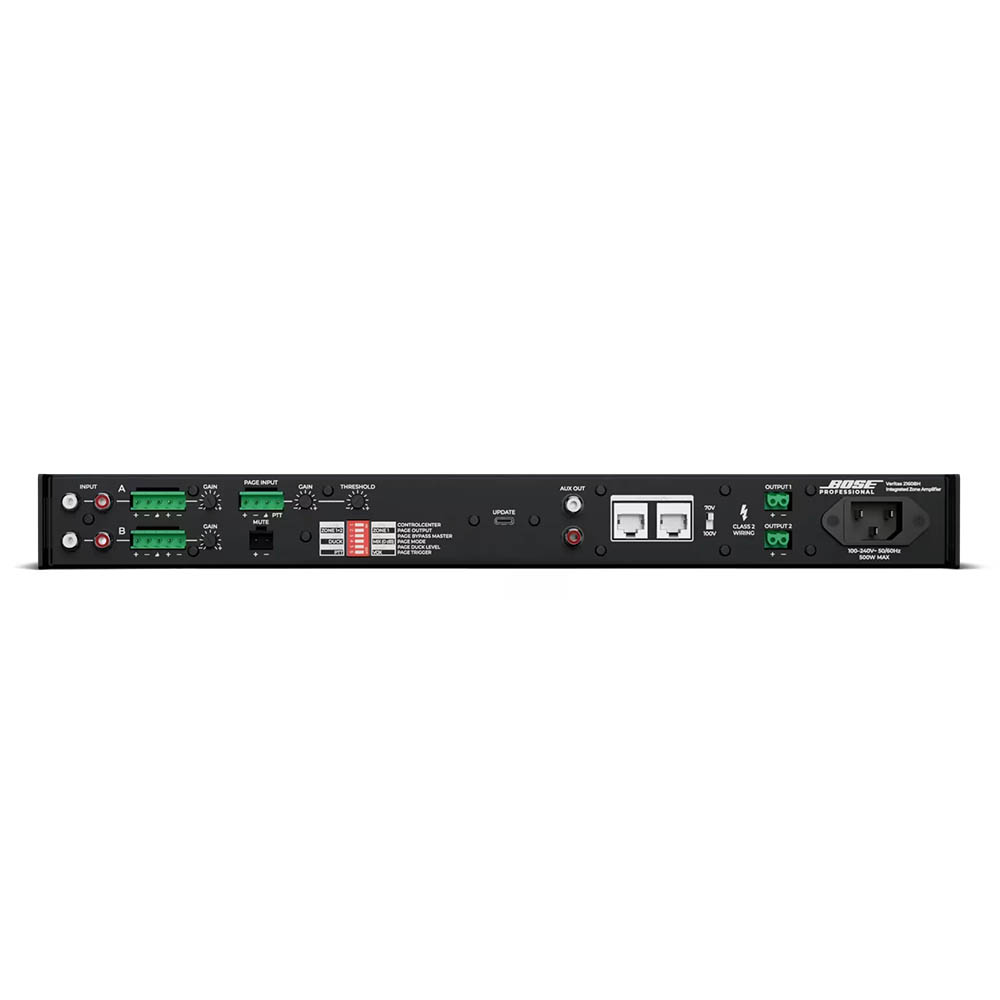

Rear Panel Controls: Amplifier mode DIP switches, input gain knobs (A, B, page), page threshold knob, mute connector, ControlCenter ports
A/D and D/A Converters: 48 kHz / 24-bit
Audio Latency: 10.4 ms (any input to speaker output or aux output)
Presets: 70 Hz high-pass filter, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer
Processing Functions: Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
Cooling System: Fan system, left-to-right airflow
Product Dimensions (H×W×D): 44 mm × 483 mm × 324 mm (1.7 in × 19.0 in × 12.8 in)
Net Weight: 4.4 kg (9.7 lb)
Shipping Weight: 5.8 kg (12.8 lb)
Product Codes: 892121-1110 (120V US); 892121-2110 (230V EU); 892121-4110 (230V UK); 892121-3140 (100V JP); 892121-2140 (230V CN); 892121-5110 (240V AU)
Included in Packaging: (4) mounting feet with pins; (2) 5-pin Euroblock connectors; (1) 4-pin Euroblock connector; (3) 2-pin Euroblock connectors; (1) power cord; (1) installation guide
FreeSpace FS4CE Speaker
Active/Passive: Passive
Number of Included Speakers: 1
Speaker Configuration: Full-Range
Power Handling: 50 W RMS; 100 W Program; 200 W Peak
70V Transformer Taps: 2.5 / 5 / 10 / 20 / 40 W or 8 Ohms Bypass
100V Transformer Taps: 5 / 10 / 20 / 40 W or 8 Ohms Bypass
Impedance: 8 Ohms (Nominal, Transformer Bypassed)
Enclosure Type: Bass-Reflex
Full-Range Driver: 1 x 4.5″ / 11.4 cm
Frequency Range: 70 Hz to 17 kHz (-10 dB)
Frequency Response: 80 Hz to 16 kHz (±3 dB)
Maximum SPL: 105 dB SPL (Continuous); 111 dB SPL (Peak)
Sensitivity: 88 dB SPL
Coverage Angle: 115° (Conical)
Inputs/Outputs: 1 x Block 6-Pin Speaker Input
Maximum Wire Gauge: 14 AWG / 2.5 mm
Environmental Resistance: Dust/Water-Resistant (IP55)
Operating Conditions: -13 to 158°F / -25 to 70°C
Color: White
Cutout Size: 9.8 x 9.8″ / 24.9 x 24.9 cm
Mount Surface Thickness: Up to 1.5″ / 3.8 cm
Construction Material: Metal Grille, Plastic, Steel
Dimensions: 10.7 x 6.8″ / 27.2 x 17.3 cm
Weight: 7.6 lb / 3.4 kg
Package Weight: 21 lb
Box Dimensions (L × W × H): 28 x 17 x 10.5″
