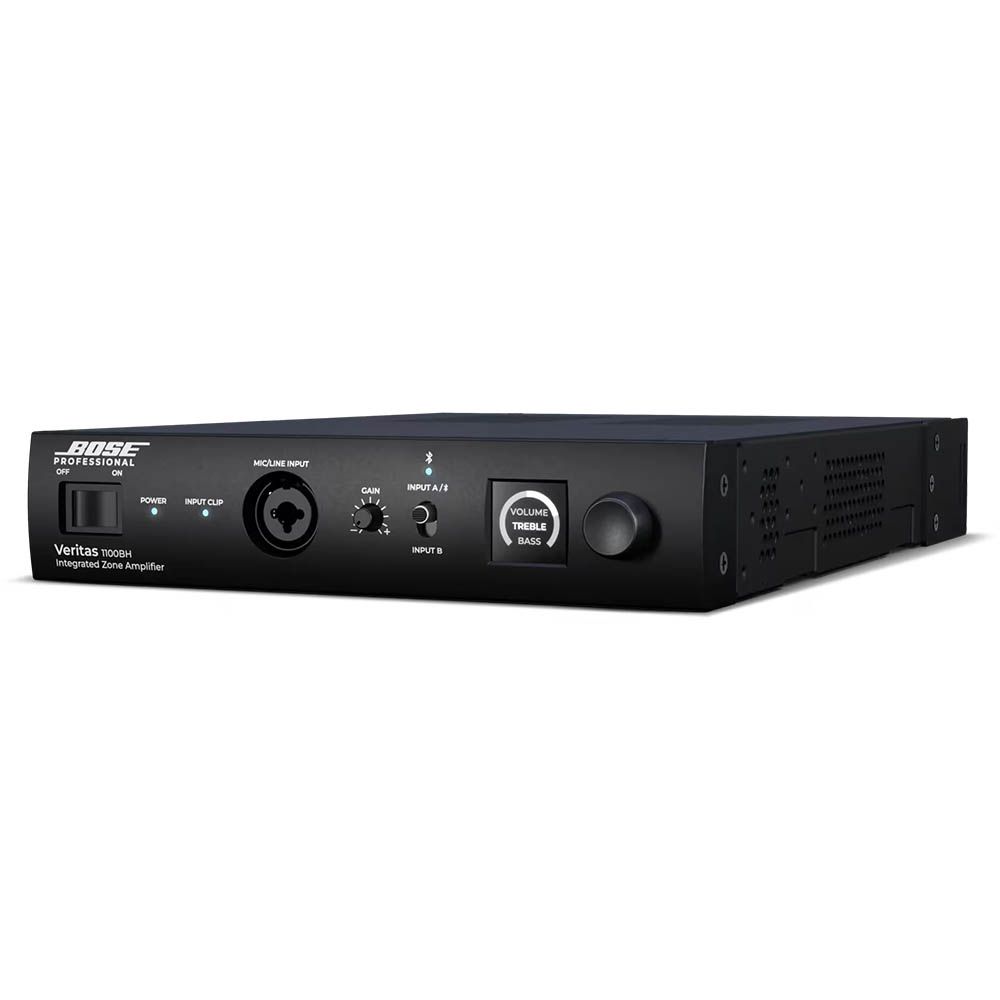

Veritas 1100BH Mixer Amplifier
- Premium amplification with advanced DSP for optimized performance
- Bluetooth connectivity and RCA connectivity—no wire splicing requird
- Intuitive front-panel OLED screen for easy setup and control
- Included bracket accessory for mount-anywhere flexibility
- Embedded quick-start QR code in the OLED screen simplifies installation
- Supports high-impedance (70/100V) applications
- Remote level control with Bose Professional or third-party wall controllers
- Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes
- Up to 30 selectable EQ presets ensure Bose Professional signature sound performance and long-term reliability
- Opti-Voice paging feature ensures clear speech intelligibility
- Convection cooling enables fanless operation in quiet installations such as offices and conference rooms

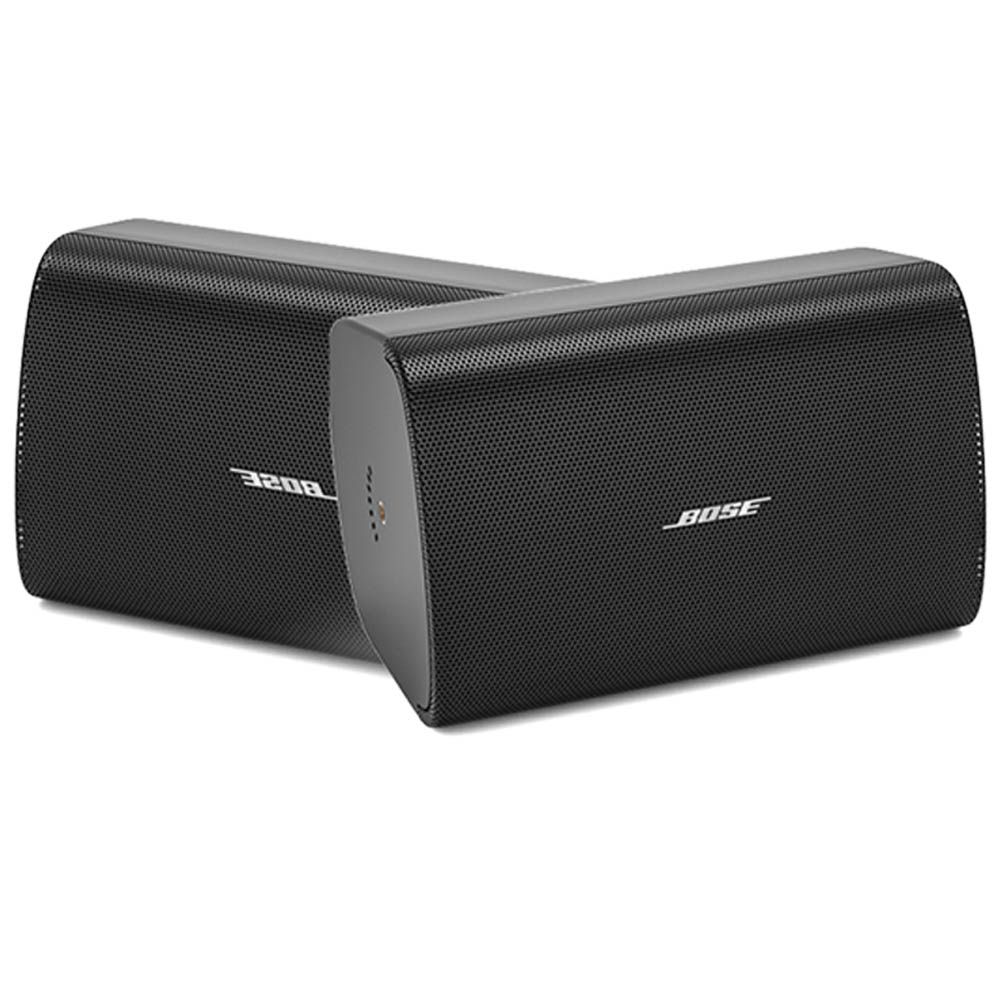

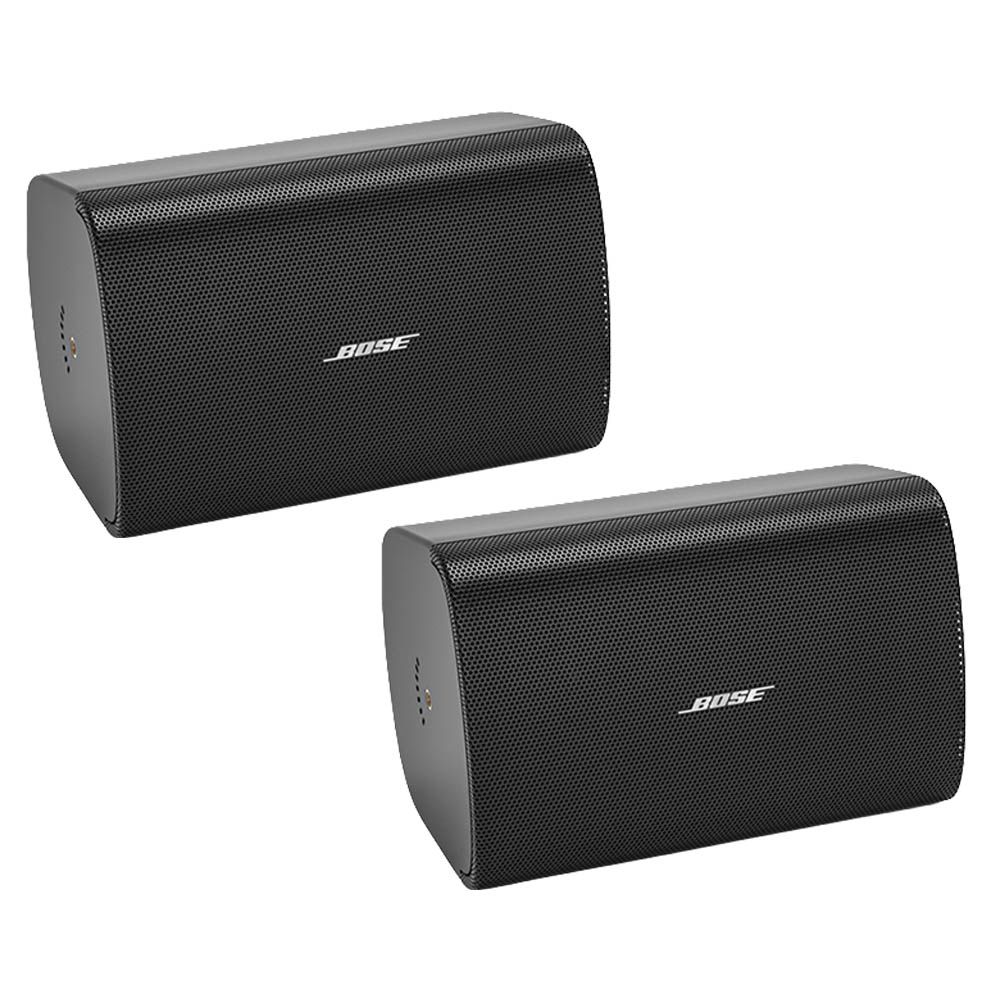

FreeSpace FS4SE Speaker
- Maintains consistent tonal quality with shared voicing across all FS models
- Delivers clear voice reproduction and smooth response for background music
- Supports tailored mix-and-match installations with in-ceiling, surface-mount, and pendant-mount options
- Supports expanded system designs with DesignMax subwoofers and larger models
- Features updated black and white enclosures with removable logos for a range of room designs
- Includes a full suite of accessories for site-specific applications and mounting options
- Simplifies installation with Euroblock inputs across all models and front-baffle input locations on in-ceiling models
- Supports public safety applications with EN54-24 for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
- Is rated for outdoor, wet installations
Veritas 1100BH Mixer Amplifier
Dynamic Range: 88 dB
Frequency Response: 70 Hz – 18 kHz (+0/-4 dB, @ 1 W reference 1 kHz)
Rated Power, Symmetrical: 1 x 100 W at 70V/100V
THD+N: ≤0.3% (at full rated power)
Input Channels: (2) unbalanced line, (2) balanced mic/line
Input Connectors: (2) RCA stereo pairs, (1) XLR/1/4-in, (1) 4-pin Euroblock
Input Impedance: 20 kΩ (line), 2.4 kΩ (page)
Input Range: -10 dBV to +10 dBV (line), -60 dBV to +10 dBV (page)
Maximum Input Level: +10 dBV (line), +10 dBV (page)
Nominal Input Level: 0 dBV (line), -40 dBV (page)
Sensitivity: -10 dBV (line), -58 dBV (page)
Output Channels: (2) loudspeaker, (1) unbalanced line
Nominal Output Level: 1 × 100 W at 70V/100V (loudspeaker), 0 dBV max (auxiliary)
Mains Connector: IEC C14 inlet
Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
Protections: High temperature, output short
AC Power Consumption: 15 W idle, 200 W maximum

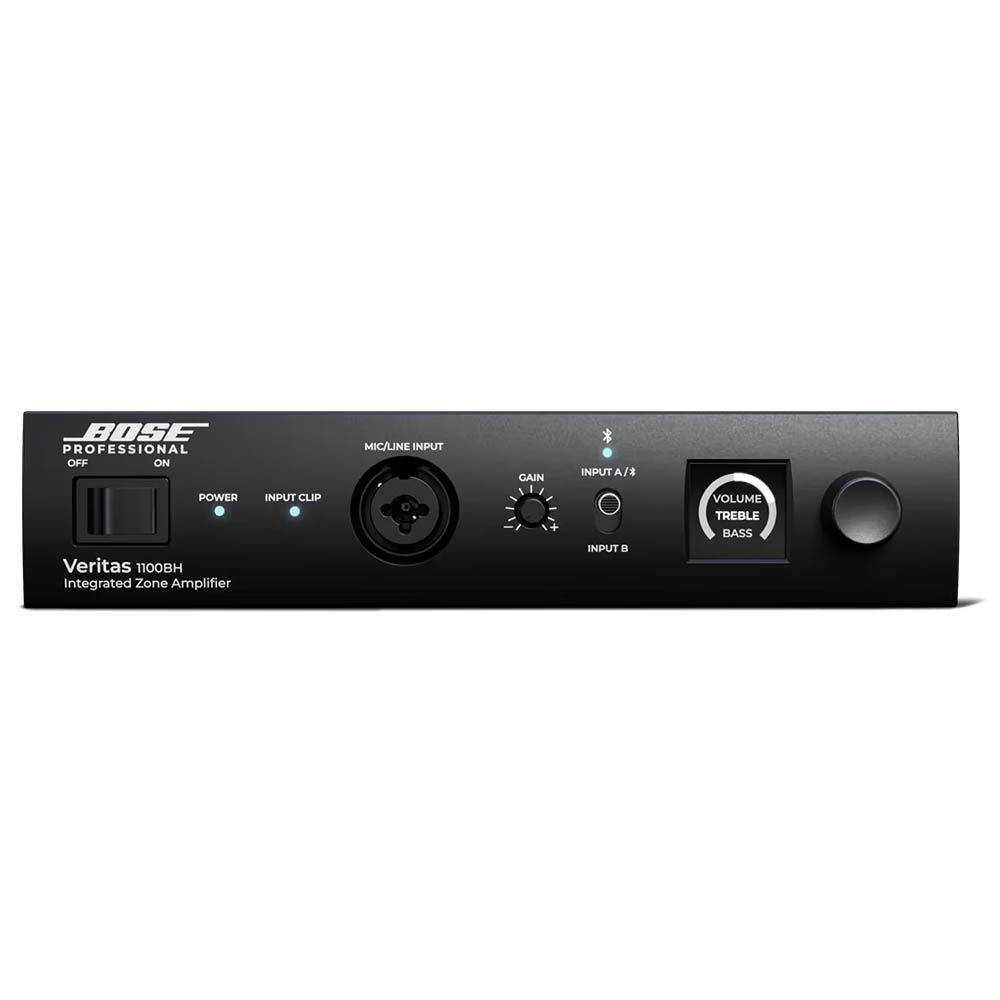

Front Panel Controls: Power on/off switch, input select switch (A/Bluetooth/B), input gain knob (XLR/1/4-in), rotary encoder

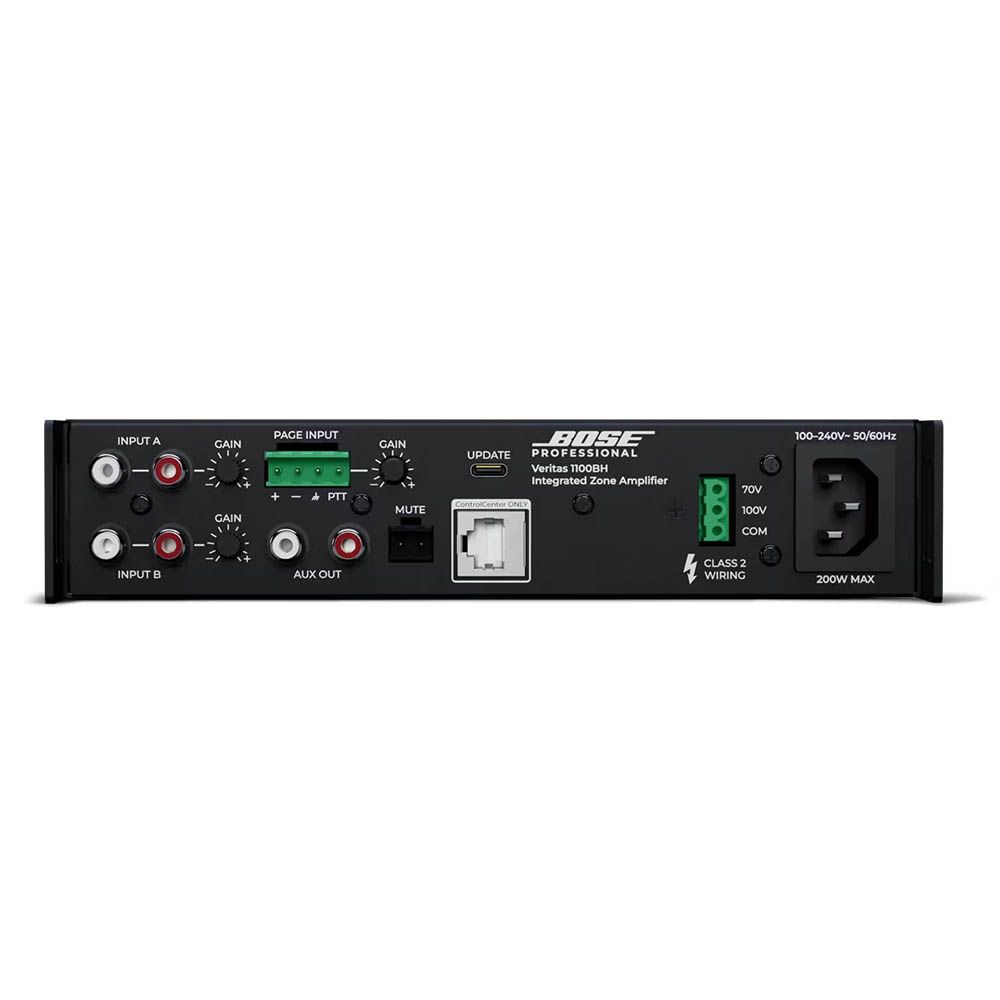

Rear Panel Controls: Input gain knobs (A, B, page), mute connector, ControlCenter port
A/D and D/A Converters: 48 kHz / 24-bit
Audio Latency: 10.4 ms (any input to speaker output or aux output)
Presets: 70 Hz high-pass filter, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer
Processing Functions: Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
Cooling System: Natural convection
Product Dimensions (H×W×D): 44 mm × 214 mm × 310 mm (1.7 in × 8.4 in × 12.2 in)
Net Weight: 3.2 kg (7.1 lb)
FreeSpace FS4SE Speaker
EN 54-24 Certified: Yes
Safety Agency Ratings: EN 54-24: 2008 for Voice Alarm Systems; UL 1480(A); NFPA 70 & NFPA 72; CSA C22.1 Section 32
Colors: Black (similar to RAL 9005), white (similar to RAL 9003)
Enclosure Material: Engineered plastics, highly UV fade-resistant
Grille: Steel, powder-coated finish
Ingress Protection: IP55
Logo: Rotatable, removable
Operating Temperature Range: -25 °C to 70 °C (-13 °F to 158 °F)
Product Dimensions (H×W×D): 10.0 in × 6.7 in × 6.8 in (254 mm × 171 mm × 174 mm), loudspeaker / 10.7 in × 6.7 in × 7.7 in (273 mm × 171 mm × 196 mm), loudspeaker with bracket
Net Weight: 6.8 lb (3.1 kg), loudspeaker with grille & bracket (single)
Shipping Weight: 18.4 lb (8.3 kg), pair
Frequency Range (-10 dB): 70 – 17,000 Hz
Coverage, Horizontal: 130°
Coverage, Vertical: 125°
Calculated Maximum SPL @ 1 m: 105 dB
Nominal Impedance: 8 Ω (transformer bypass)
Power Handling, Long-Term Continuous: 40 W
Power Handling, Peak: 160 W
Sensitivity (SPL/1 W at 1 m): 89 dB
Transformer Taps, 100V: 5, 10, 20, 40 W, bypass
Transformer Taps, 70V: 2.5 W, 5 W, 10 W, 20 W, 40 W, bypass
Driver Protection: Recommended high-pass protection 70 Hz with minimum 24-dB/octave filter
Low-Frequency Driver: 1 × 4.5 in (114 mm) woofer
