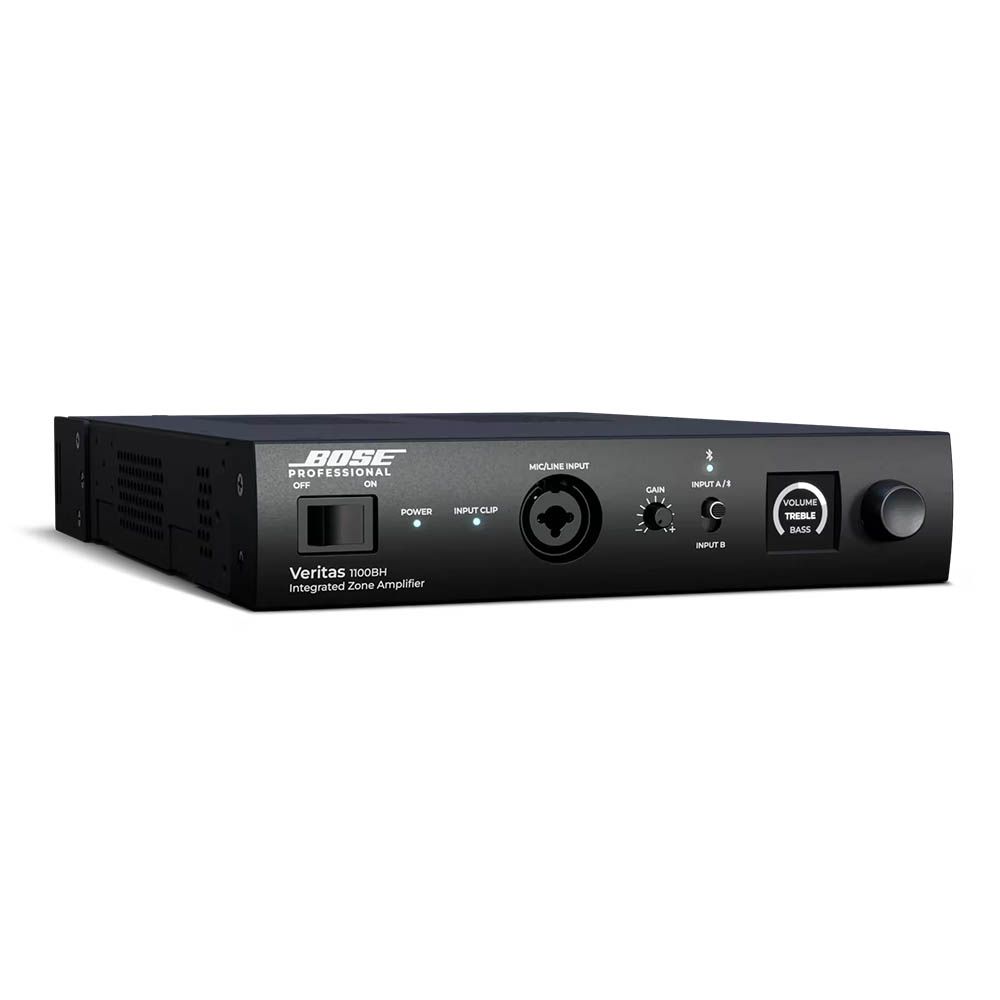

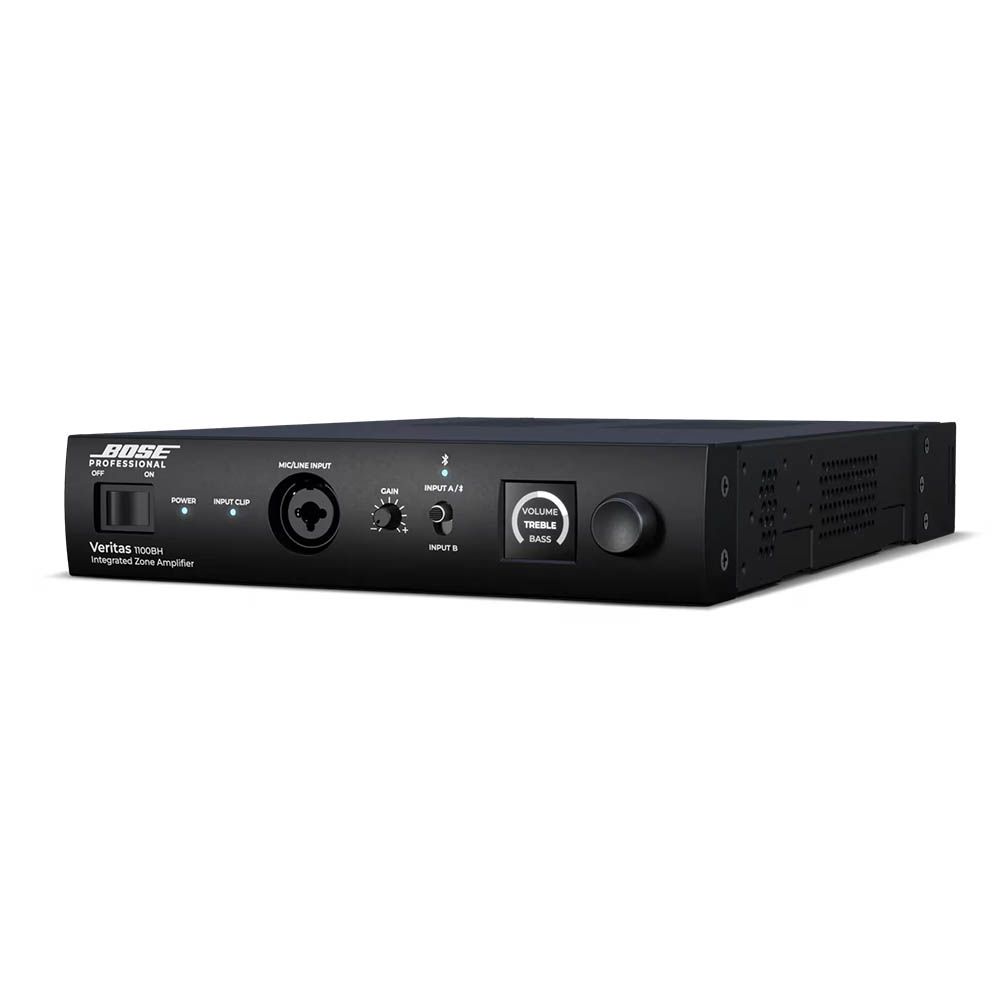

Veritas 1100BH Mixer Amplifier
- Premium amplification with advanced DSP for optimized performance
- Bluetooth connectivity and RCA connectivity—no wire splicing required
- Intuitive front-panel OLED screen for easy setup and control
- Included bracket accessory for mount-anywhere flexibility
- Embedded quick-start QR code in the OLED screen simplifies installation
- Supports high-impedance (70/100V) applications
- Remote level control with Bose Professional or third-party wall controllers
- Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes
- Up to 30 selectable EQ presets ensure Bose Professional signature sound performance and long-term reliability
- Opti-Voice paging feature ensures clear speech intelligibility
- Convection cooling enables fanless operation in quiet installations such as offices and conference rooms
FreeSpace FS4CE Speaker
- Maintains consistent tonal quality with shared voicing across all FS models
- Delivers clear voice reproduction and smooth response for background music
- Supports tailored mix-and-match installations with in-ceiling, surface-mount, and pendant-mount options
- Allows system expansion with DesignMax subwoofers and larger models
- Features updated black and white enclosures with removable logos for modern room designs
- Includes a full suite of accessories for site-specific applications and mounting options
- Simplifies installation with Euroblock inputs across all models and front-baffle input locations on in-ceiling models
- Supports public safety applications with EN54-24 certification for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
- Is rated for outdoor and wet installations
Veritas 1100BH Mixer Amplifier
Dynamic Range: 88 dB
Frequency Response: 70 Hz – 18 kHz (+0/-4 dB, @ 1 W reference 1 kHz)
Rated Power, Symmetrical: 1 × 100 W at 70V/100V
THD+N: ≤0.3% (at full rated power)
Input Channels: (2) unbalanced line, (2) balanced mic/line
Connectors: (2) RCA stereo pairs, (1) XLR/1/4-in, (1) 4-pin Euroblock
Input Impedance: 20 kΩ (line), 2.4 kΩ (page)
Input Range: -10 dBV to +10 dBV (line), -60 dBV to +10 dBV (page)
Maximum Input Level: +10 dBV (line), +10 dBV (page)
Nominal Input Level: 0 dBV (line), -40 dBV (page)
Sensitivity: -10 dBV (line), -58 dBV (page)
Channels: (2) loudspeaker, (1) unbalanced line
Nominal Output Level: 1 × 100 W at 70V/100V (loudspeaker), 0 dBV max (auxiliary)
Mains Connector: IEC C14 inlet
Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
Protections: High temperature, output short
AC Power Consumption: 15 W idle, 200 W maximum

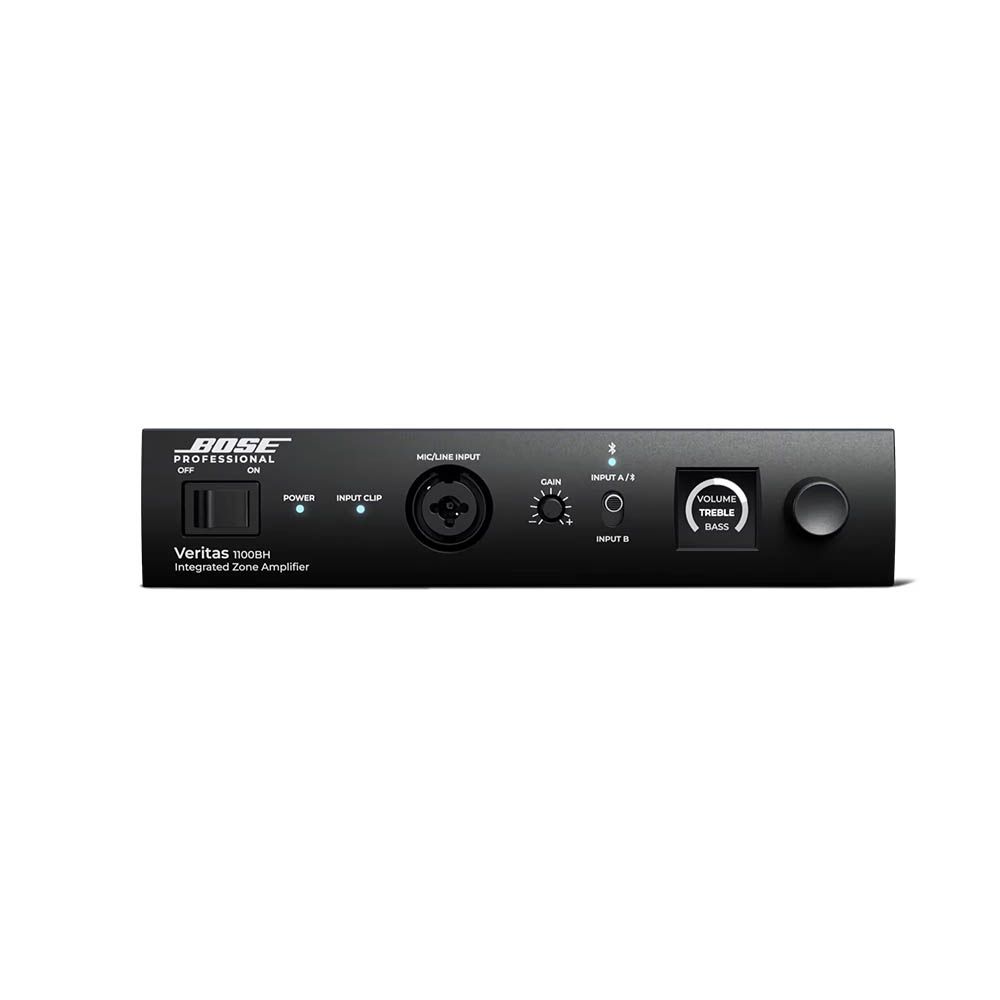

Controls, Front Panel: Power on/off switch, input select switch (A/Bluetooth/B), input gain knob (XLR/1/4-in), rotary encoder

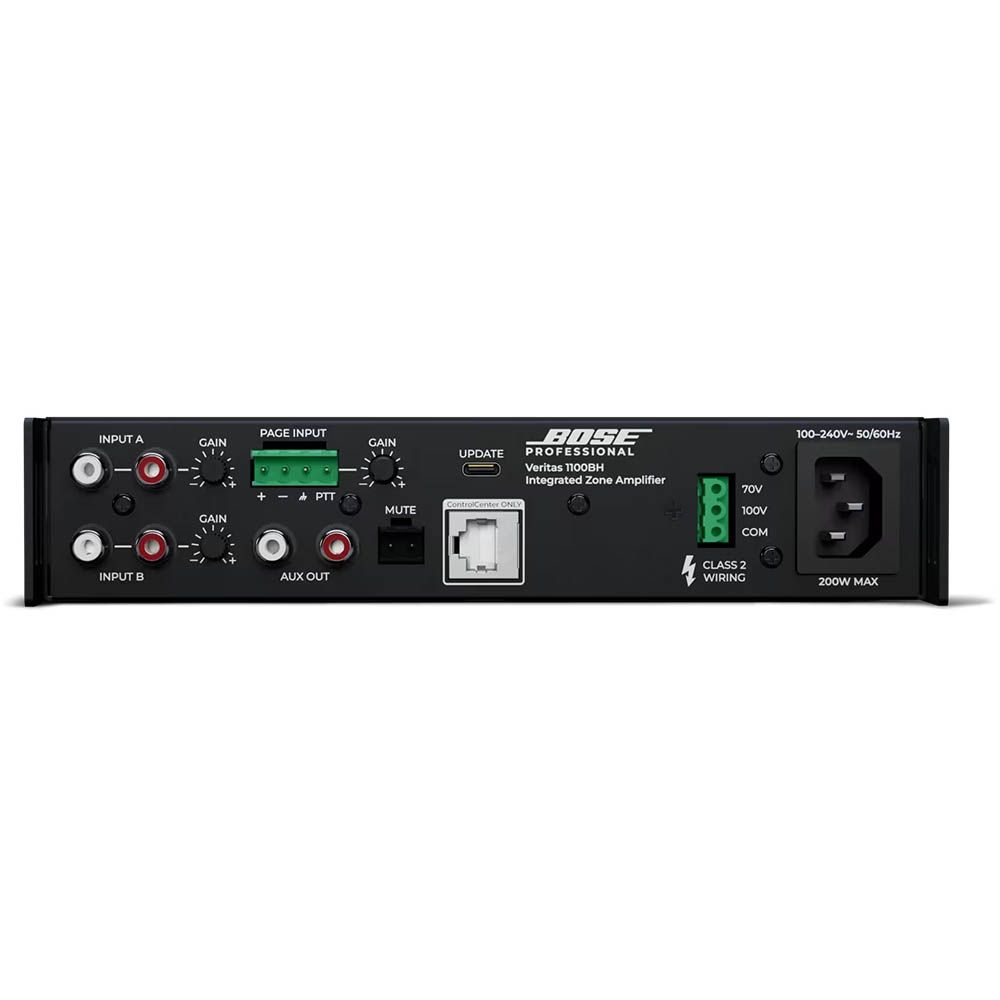

Controls, Rear Panel: Input gain knobs (A, B, page), mute connector, ControlCenter port
A/D and D/A Converters: 48 kHz / 24-bit
Audio Latency: 10.4 ms (any input to speaker output or aux output)
Presets: 70 Hz high-pass filter, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer
Processing Functions: Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
Cooling System: Natural convection
Product Dimensions (H×W×D): 44 mm × 214 mm × 310 mm (1.7 in × 8.4 in × 12.2 in)
Net Weight: 3.2 kg (7.1 lb)

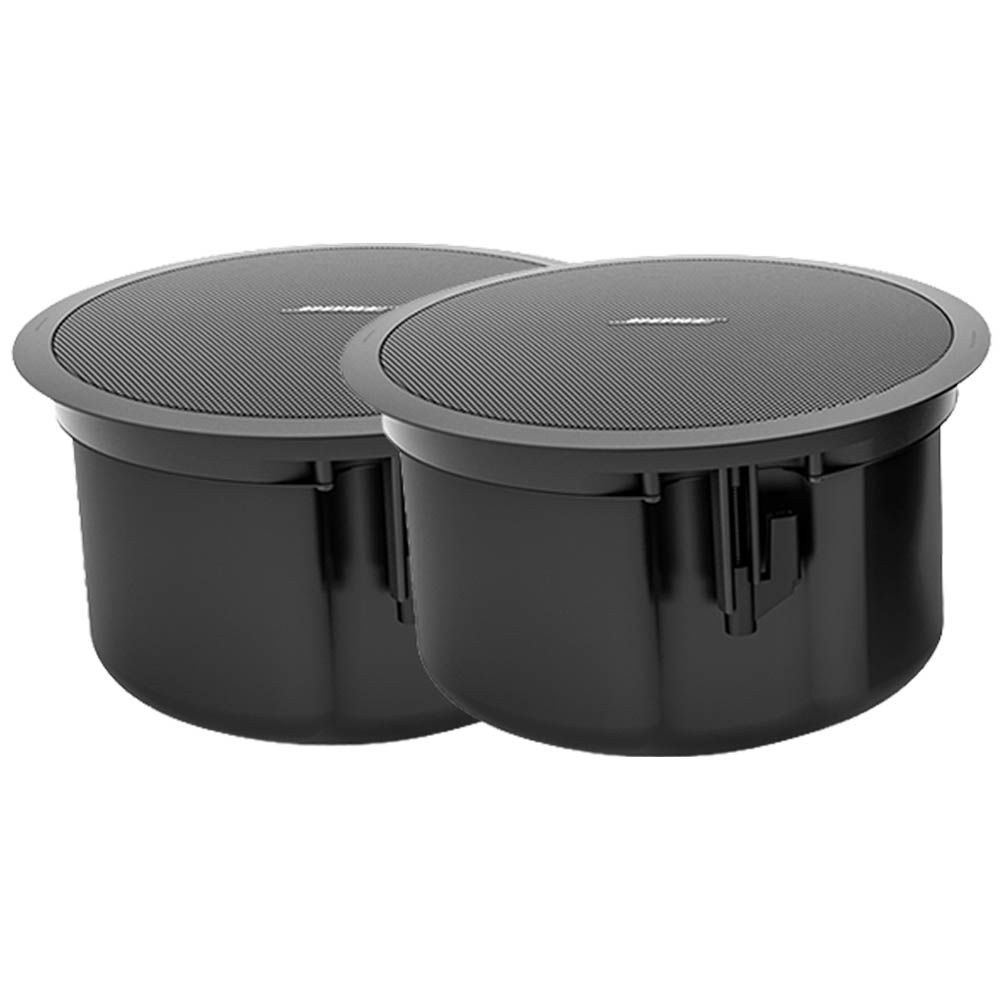

FreeSpace FS4CE Speakers
EN 54-24 Certified: Yes
Safety Agency Ratings: EN 54-24:2008 for Voice Alarm Systems; UL 1480(A); in compliance with UL 2043 for plenum-space installation; NFPA 70 & NFPA 72; CSA C22.1 Section 32
Colors: Black (similar to RAL 9005), white (similar to RAL 9003)
Enclosure Material: Engineered-plastics front baffle, highly UV fade-resistant, with integrated steel-formed backcan
Grille: Perforated steel, powder-coated finish
Ingress Protection: IP55
Ceiling Cutout: 9.8 in (249 mm)
Logo: Rotatable, removable
Suspension/Mounting: (3) mounting arms, (1) safety cable attachment point
Operating Temperature Range: -25 °C to 70 °C (-13 °F to 158 °F)
Product Dimensions (H×W×D): 10.7 in × 6.8 in (272 mm × 172 mm), loudspeaker diameter × depth / 8.7 in × 6.4 in (220 mm × 163 mm), backcan diameter × depth
Net Weight: 7.7 lb (3.5 kg), loudspeaker with grille (single)
Shipping Weight: 20.0 lb (9.1 kg), pair
Frequency Range (-10 dB): 70 – 17,000 Hz
Coverage, Horizontal: 145°
Coverage, Vertical: 145°
Calculated Maximum SPL @ 1 m: 104 dB
Nominal Impedance: 8 Ω (transformer bypass)
Power Handling, Long-Term Continuous: 40 W
Power Handling, Peak: 160 W
Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m): 88 dB
Transformer Taps, 100V: 5, 10, 20, 40 W, bypass
Transformer Taps, 70V: 2.5 W, 5 W, 10 W, 20 W, 40 W, bypass
Driver Protection: Recommended high-pass protection 70 Hz with minimum 24-dB/octave filter
Low-Frequency: 1 × 4.5 in (114 mm) woofer
