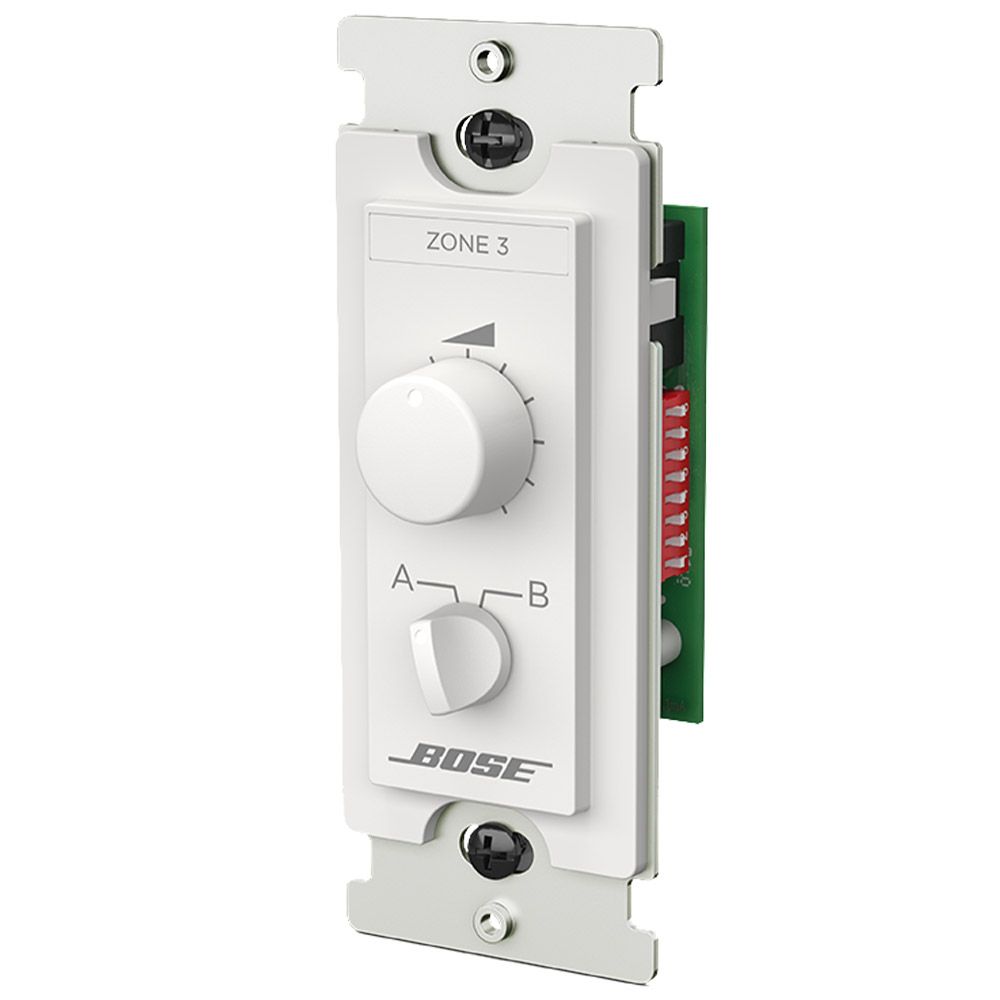

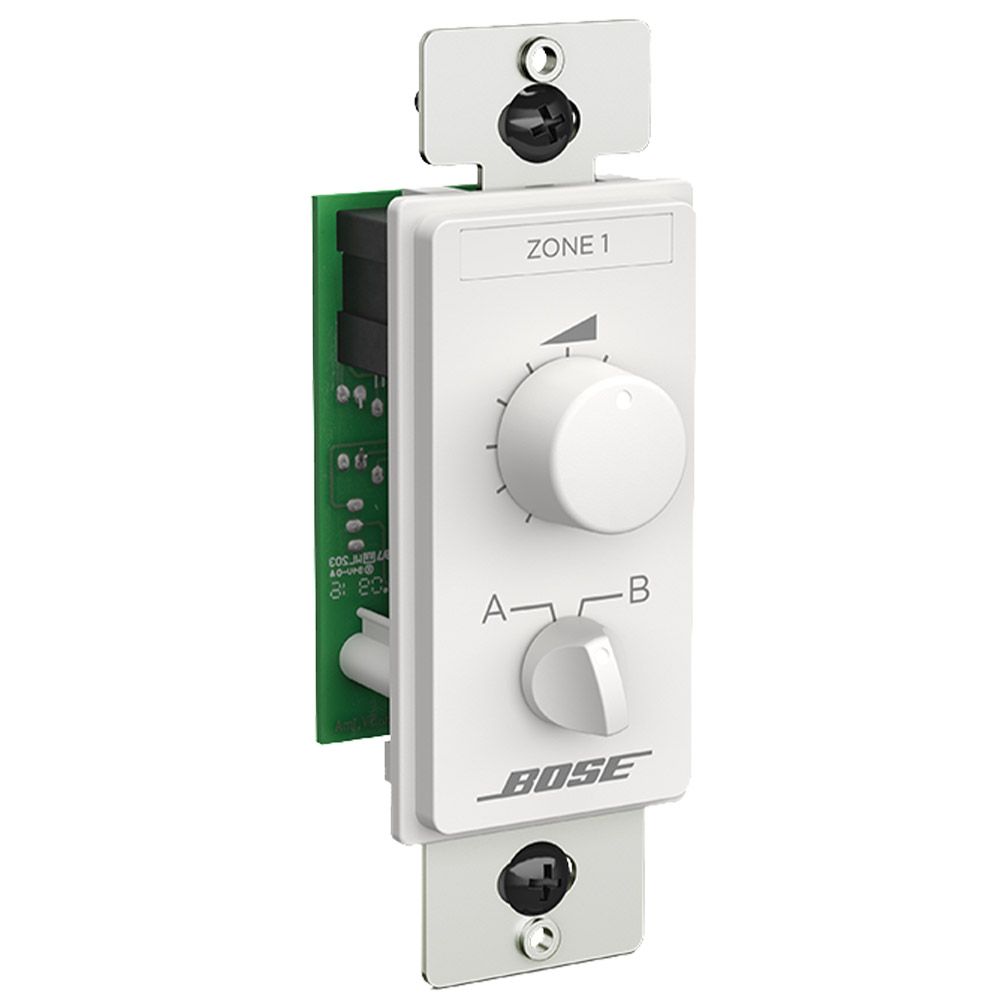

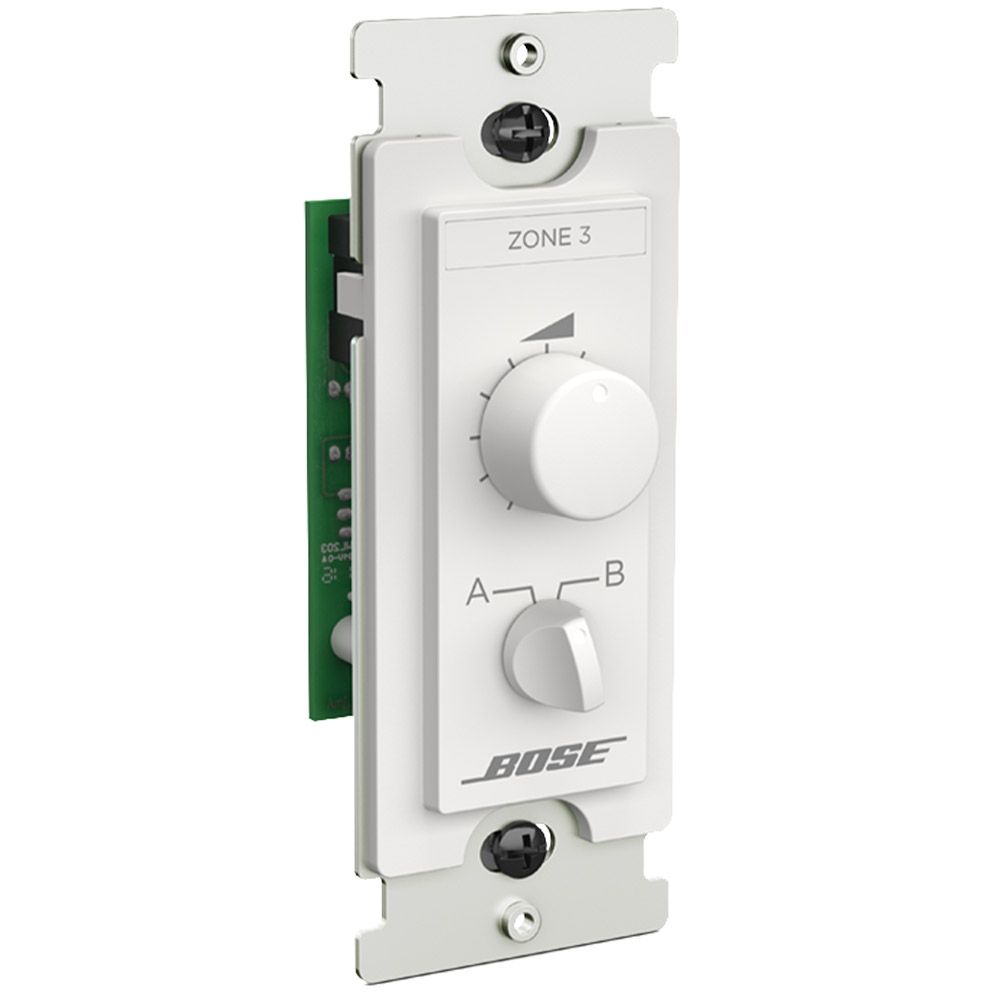

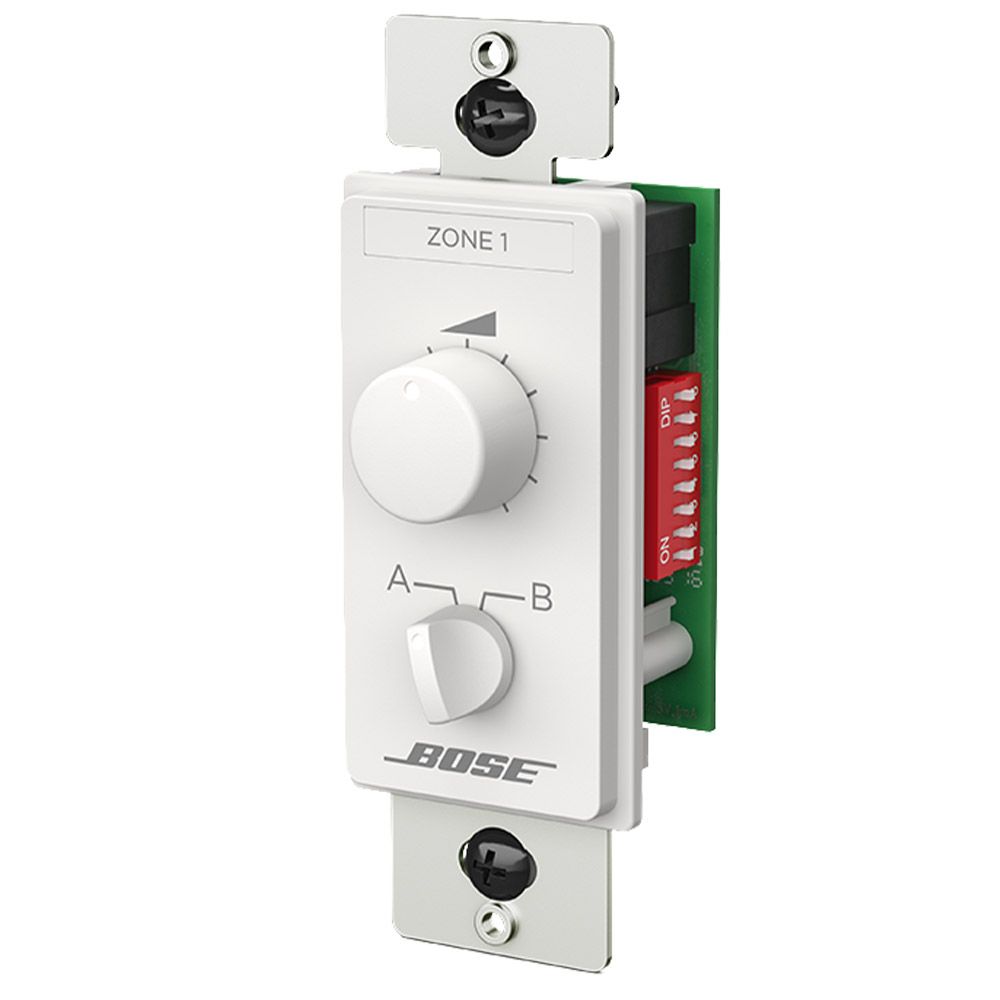

Bose Professional ControlCenter CC-2 Zone Controller (White)
The Bose Professional ControlCenter CC-2 zone controller puts volume and A/B source selection into a dedicated wall-mounted control point for compatible FreeSpace and ControlSpace products. Two front-panel knobs keep the essential adjustments clear, while RJ-45 connections and Cat 5 wiring suit the specified installation setup.
Control Volume and Sources
Separate volume and source selection knobs give operators direct control over two key zone functions. The volume knob manages level, while the source selection knob chooses between A and B sources. This focused layout suits installations that need straightforward access to both controls in one wall-mounted unit.
Designed for Bose Professional Systems
The controller is compatible with ControlSpace and FreeSpace products, including the listed ControlSpace ESP-880A and FreeSpace IZA models. It uses two RJ-45 connectors with TIA/EIA 568B wiring and requires Cat 5 cable, keeping the connection method clearly defined for supported system installations.
Regional Wall Installation

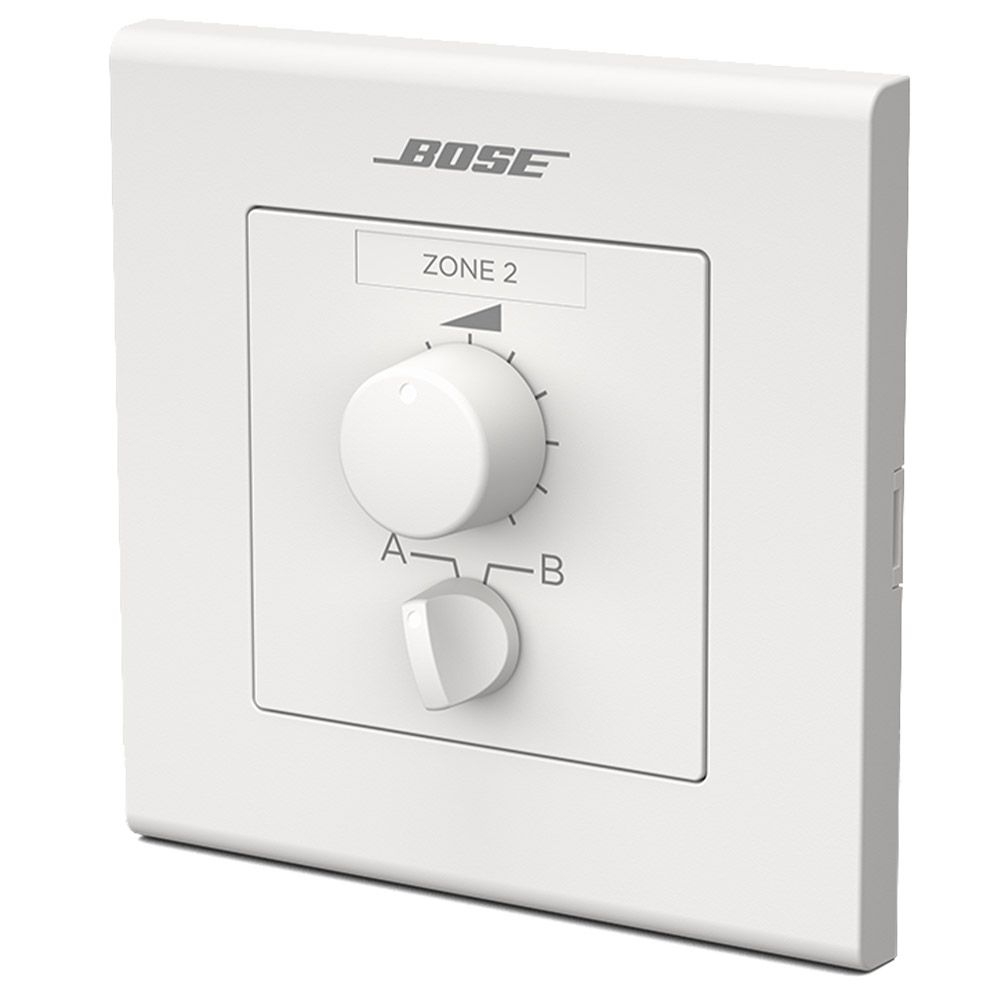

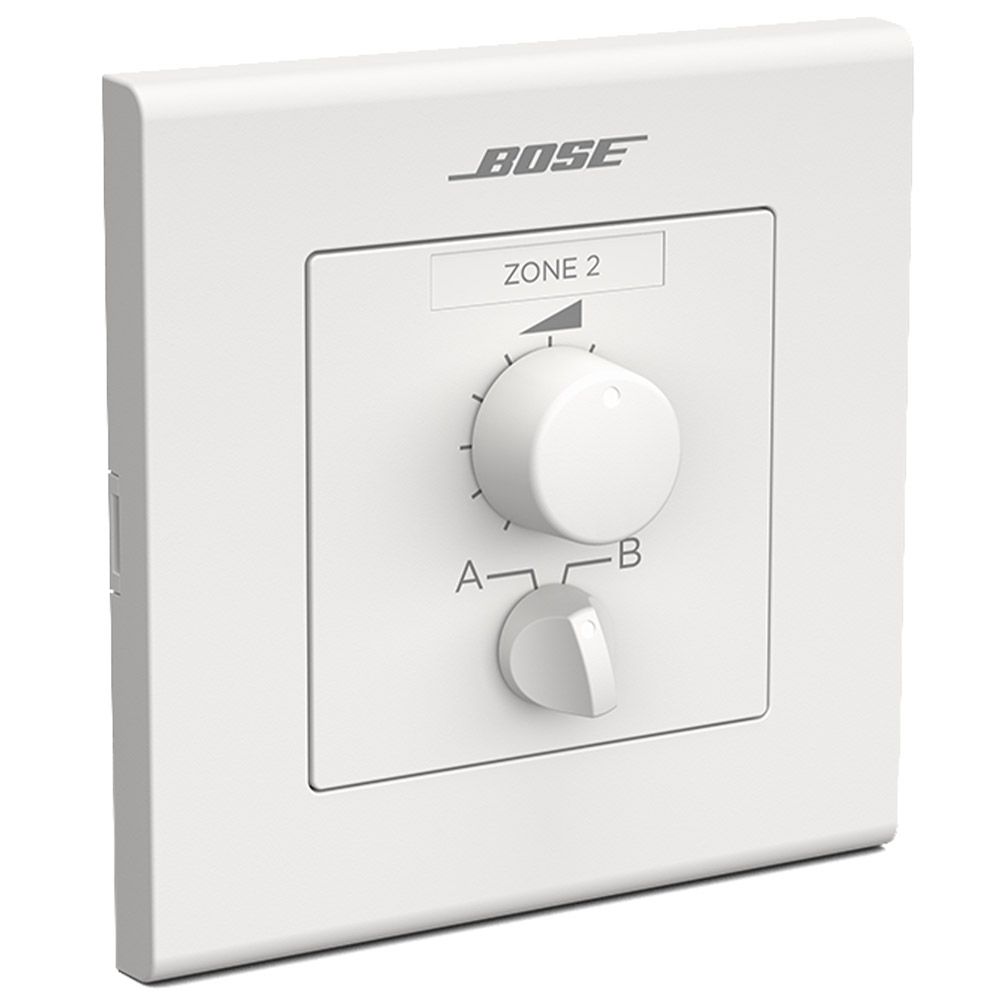

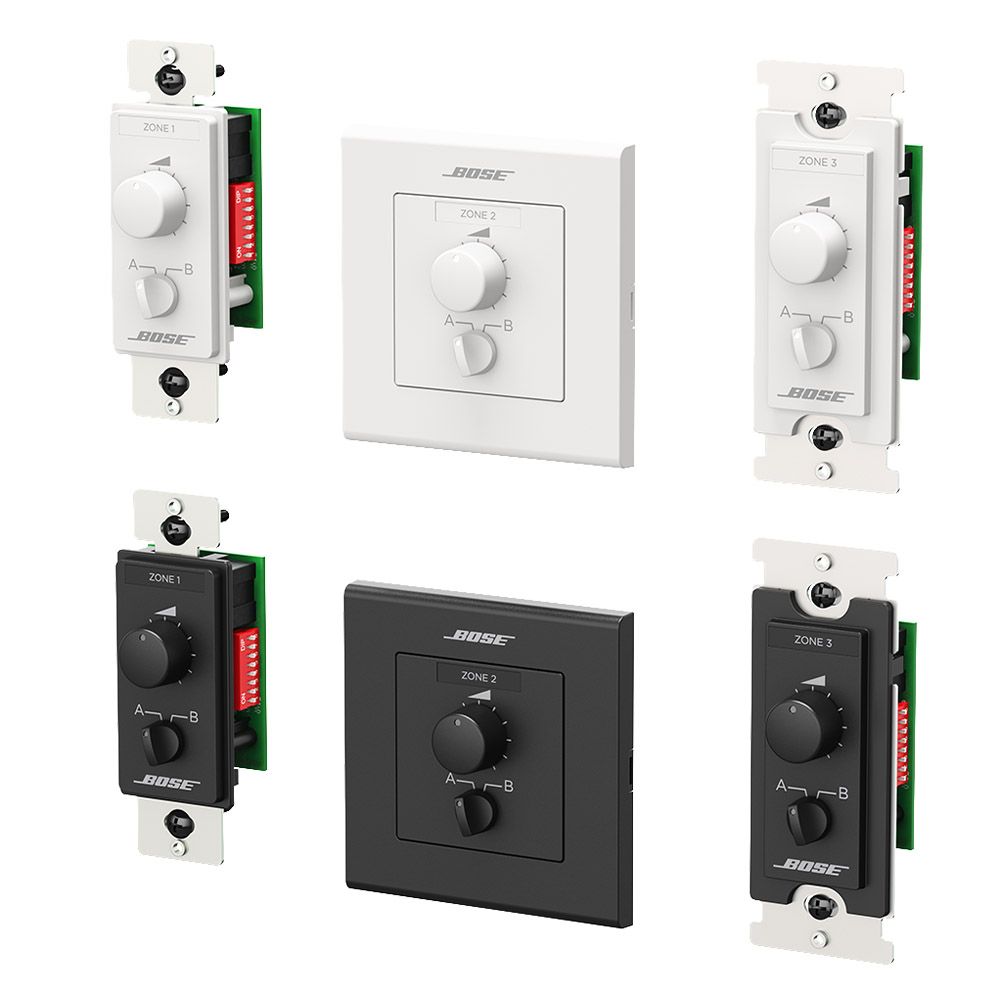

The white zone controller fits 1-gang electrical boxes, with regional dimensions for North America, Europe and Japan. North American and Japanese models are designed for Decora-style wall plate covers, while the European model is supplied as a finished wall plate, so the physical arrangement varies by region.
Clear Labelling at the Control Point
Each controller includes pre-printed labels plus two blanks for custom labeling. That gives installers a simple way to mark the control point for the particular system or space. The controller can be used in retail stores, restaurants and bars, hospitality venues, worship facilities and auxiliary zones.
Key Features
- Adjust volume and select between A/B sources from one wall-mounted controller
- Works with compatible Bose Professional FreeSpace and ControlSpace products
- Uses two RJ-45 connectors and Cat 5 cable
- Includes pre-printed labels and two blanks for custom labeling
