Blackmagic Micro Converter – BiDirectional SDI/HDMI 3G wPSU

$125
SKU: MICROCONV-BIDISDIHDMI-3GPSU Categories: , , Tags: , ,

The Blackmagic Micro Converter – BiDirectional SDI/HDMI 3G wPSU is the world’s smallest bidirectional converter. You can convert SDI to HDMI and at the same time HDMI to SDI. Supports camera control protocol allowing Blackmagic Pocket Cinema Cameras to work with SDI switchers.

Out of stock

Order Online for Delivery
or visit any of our 6 showrooms to purchase your items.
(Stock availabilities below)
Out of stock
Web
Online Out of stock
Updating stores stocks...
Seen a cheaper price elsewhere?
We'll match it!
Price Match
Price Match
Shipping Calculator
Pay in 4 interest-free payments of $. More info
Pay /mth for 12 months interest free. Fees apply.

Blackmagic Micro Converter – BiDirectional SDI/HDMI 3G wPSU

The Blackmagic Micro Converter – BiDirectional SDI/HDMI 3G wPSU is the world’s smallest bidirectional converter. You can convert SDI to HDMI and at the same time HDMI to SDI. Supports camera control protocol allowing Blackmagic Pocket Cinema Cameras to work with SDI switchers. Includes AC power supply with international socket adaptors. This model has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for colour calibrating any monitor, projector or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48. Includes 100 to 240V AC power supply with international socket adapters.

Convert with Camera Control

The new Micro Converter BiDirectional SDI/HDMI models even support camera control; so you can use a Blackmagic Pocket Cinema Camera with an ATEM SDI switcher. ATEM switchers send camera control over SDI, and the converter can translate this to HDMI for the camera. Just connect SDI from the converter out to the switcher input, the switcher program out to the converter input, and then the HDMI converter input connects to the Pocket Cinema Camera. Now add a camera number in the converter utility and you’ll get control of the camera colour corrector, tally and even remote recording! It even works in reverse and you can connect and control an SDI camera from an HDMI switcher such as ATEM Mini.

Blackmagic Micro Converters Include HDMI Timecode Support

The new Micro Converter models use a new Blackmagic Design custom hardware design; so they’re more advanced to better support the technical features critical to high-end broadcast workflows. These features include support for HDMI and SDI timecode conversion. You even get full support for timecode in both standard definition and high definition video formats. This means if you have any HDMI device that supports timecode; you can convert it to SDI and get that timecode into larger broadcast systems. Blackmagic Micro Converters might be low cost, however, they don’t miss out on advanced features needed for high-end film, television and post-production work.

Perfect for longer SDI cable lengths

Blackmagic Micro Converters include SDI re-clocking on the SDI output. SDI re-clocking will regenerate the SDI video, reduce SDI jitter and improve SDI eye pattern before the converter sends the signal to other equipment. This allows you to connect longer cable lengths; because even degraded SDI signals can still be used. Other converters often leave out important features such as re-clocking so are not reliable for broadcast use. Blackmagic Micro Converters don’t suffer from these problems; because they offer a more technically advanced design. All models comply with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M and SMPTE 425M broadcast standards. The 12G models add SMPTE 2081-10 and SMPTE 2082-10 standards.

Wider Range of SDand HD Video Standards

All Blackmagic Micro Converter models support SDI formats including 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI and 2Kp60 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI and 2KPsF30 DCI. HDMI video standards include 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94 and 1080i60. Plus 3G level A and B are supported.

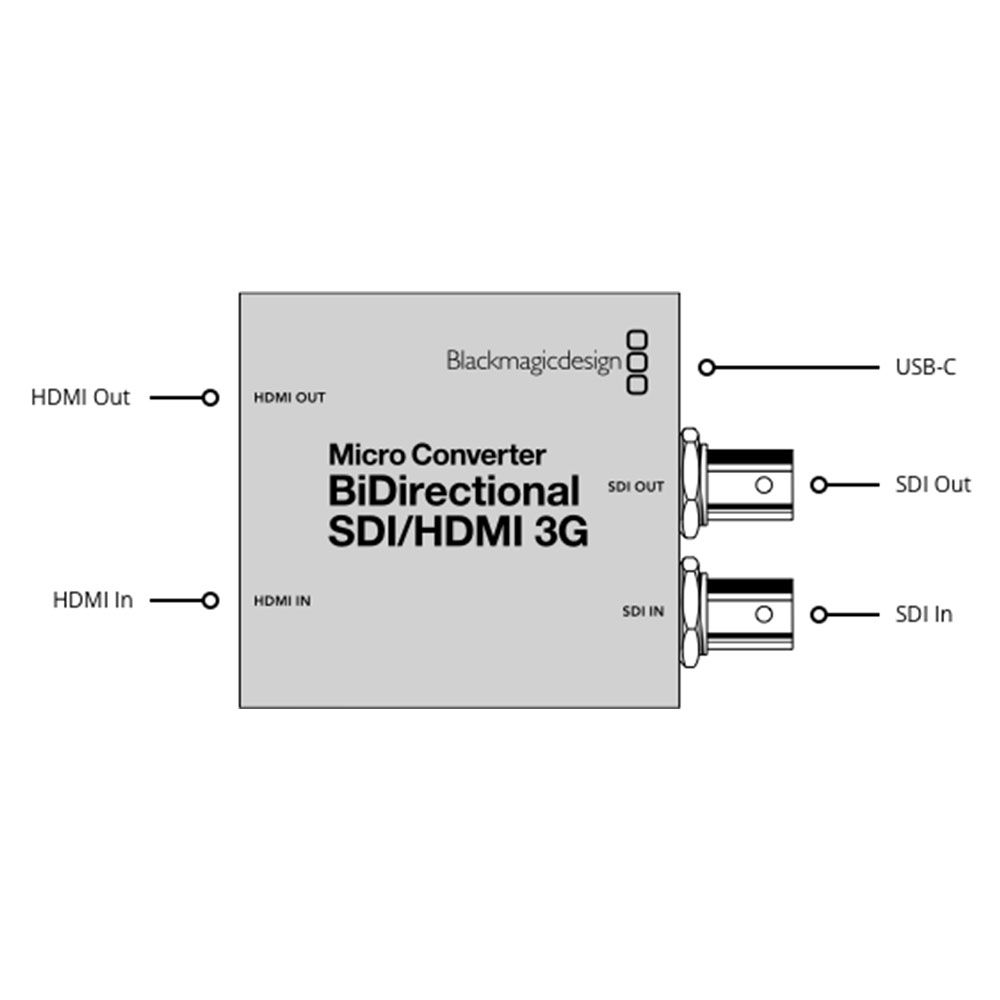

Connections

SDI Video Inputs

1 x SD, HD or 3G-SDI.

SDI Video Outputs

1 x SDI loop out.

HDMI Outputs

HDMI Type A out.

Multi Rate Support

Auto detection of SD or HD.

Updates, Configurations and Power

USB Type‑C.

Connections

SDI Video Inputs: 1 x SD, HD or 3G-SDI.

SDI Video Outputs: 1 x SDI loop out.

HDMI Outputs: HDMI Type A out.

Multi Rate Support: Auto detection of SD or HD.

Updates, Configurations and Power: USB Type‑C.



Standards

SDI Video Standards: 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M

SDI Video Rates: SDI video connections are switchable between standard definition, 720p, 1080i, 1080p and DCI high definition.

SDI Color Precision: 4:2:2

SDI Color Space: YUV

SDI Auto Switching: Automatically detects SD, HD and level A or B for 3G‑SDI.

HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HDMI Color Precision: 4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.

HDMI Color Space: YUV

Settings Control

Via MacOS™ and Windows™ software utility connected by USB.



Operating Systems

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows 10, 64-bit.



Software

Internal software upgrade via USB.



Power Requirements

Power Supply: +5V universal power supply included with international socket adapters for most countries.

Power Consumption: 1.6 W

Operational Voltage Range: 4.4V to 5.25V DC



Environmental Specifications

Operating Temperature: 0° to 40° C (32° to 104° F)

Storage Temperature: -20° to 60° C (-4° to 140° F)

Relative Humidity: 0% to 90% non-condensing



What’s Included

  • Micro Converter SDI to HDMI 3G wPSU
  • +5V universal power supply with international socket adapters

Warranty

  • 3 Year Limited Manufacturer’s Warranty.
For more information, please visit the manufacturer's website.
