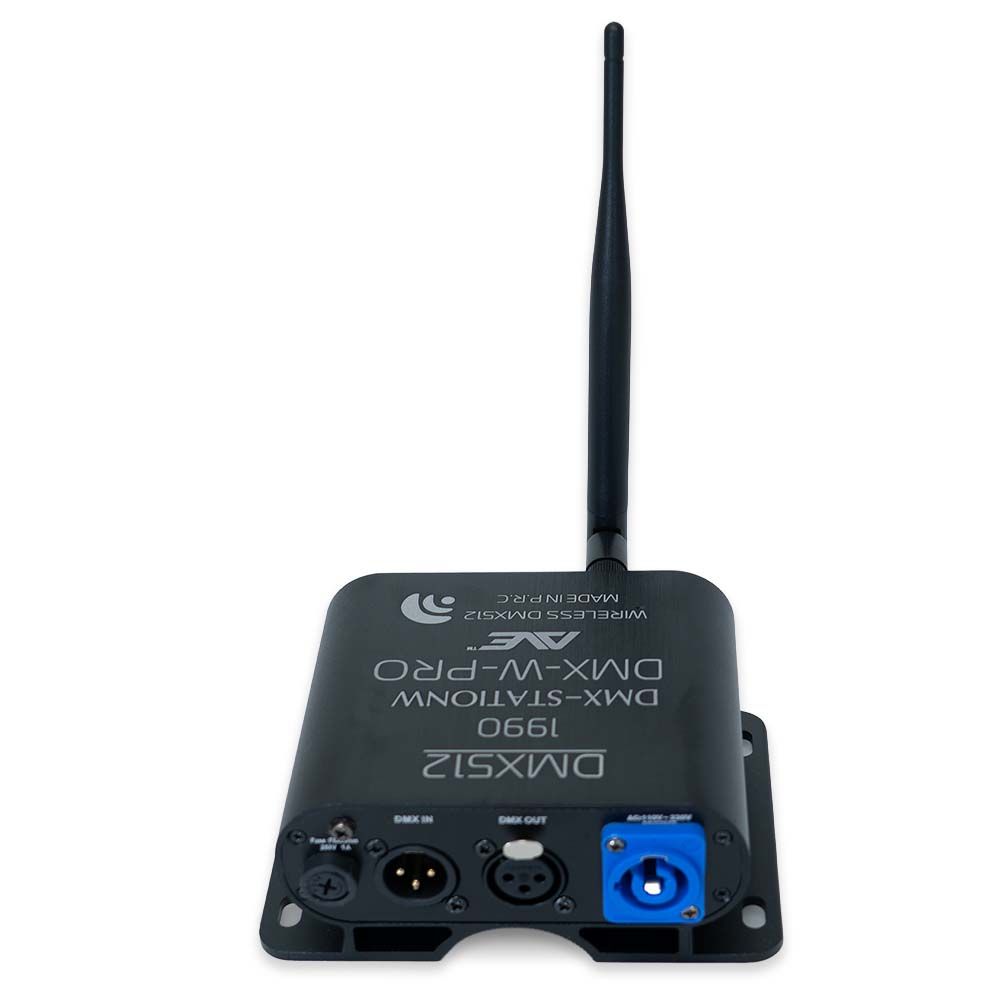

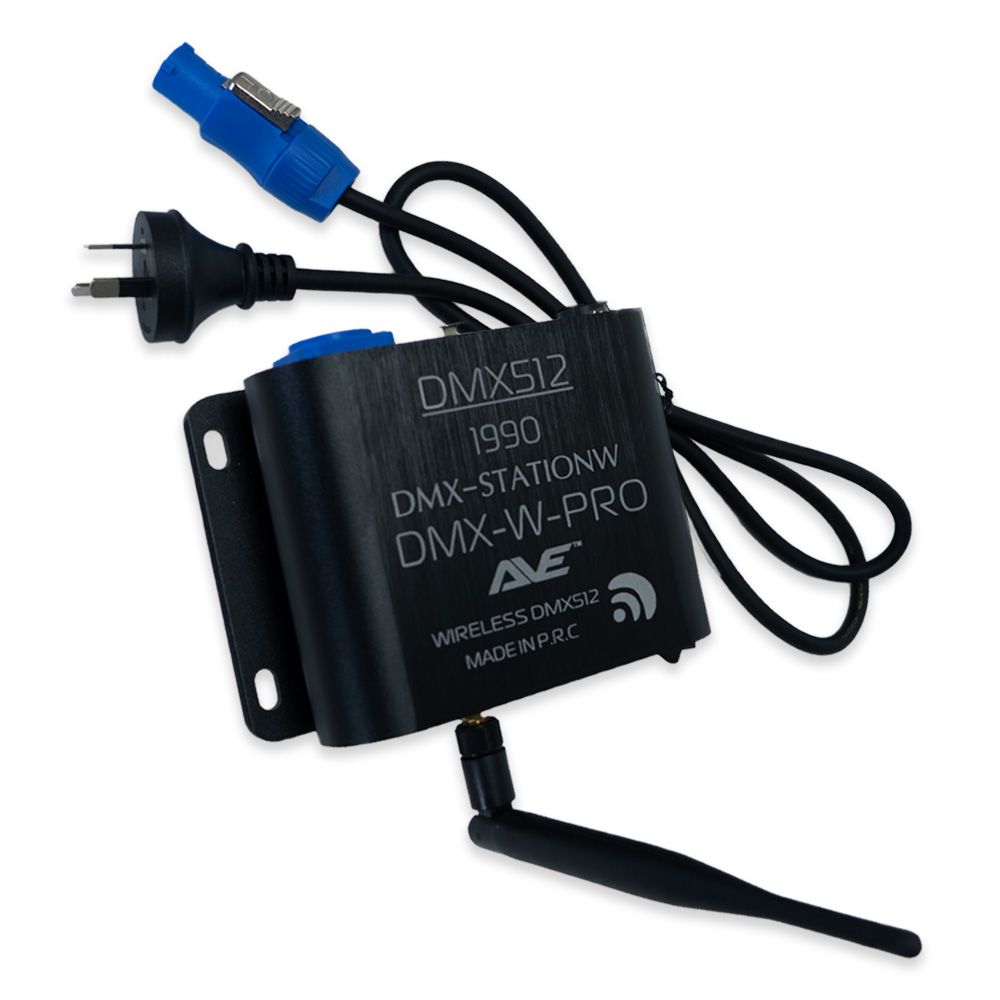

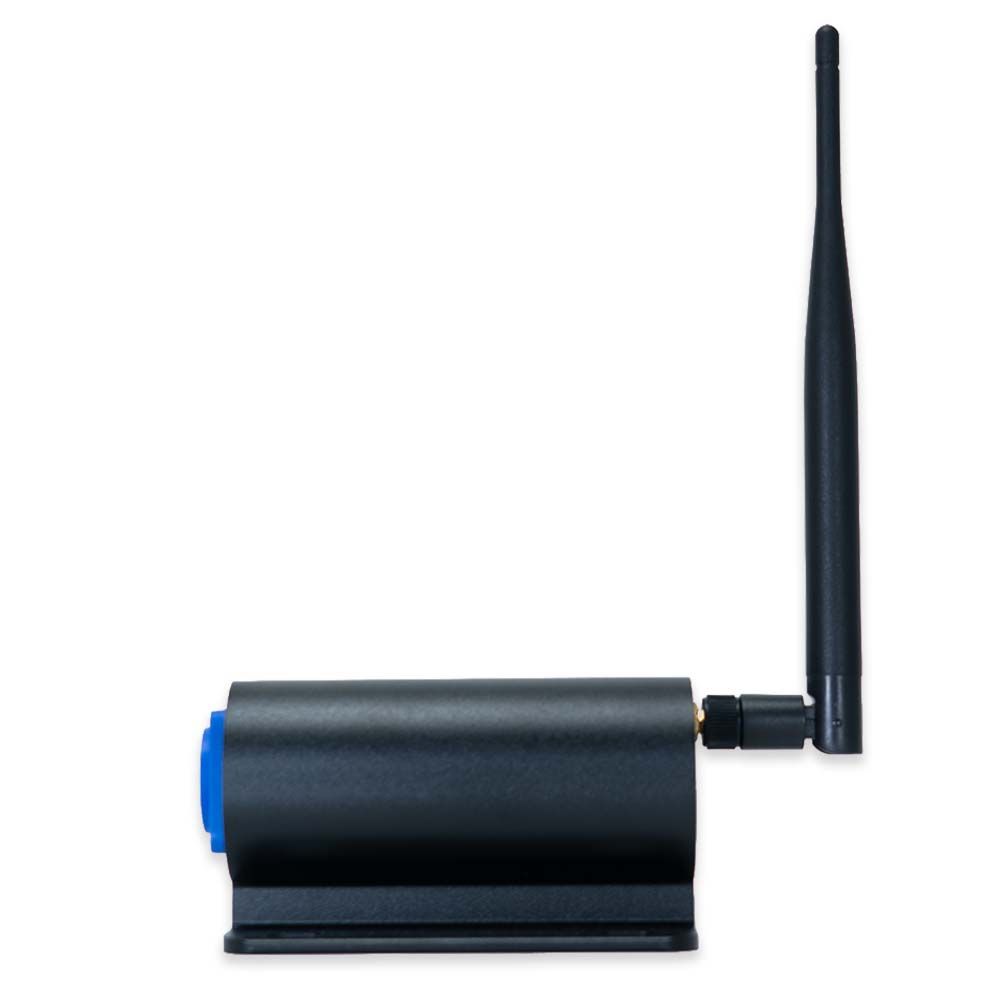

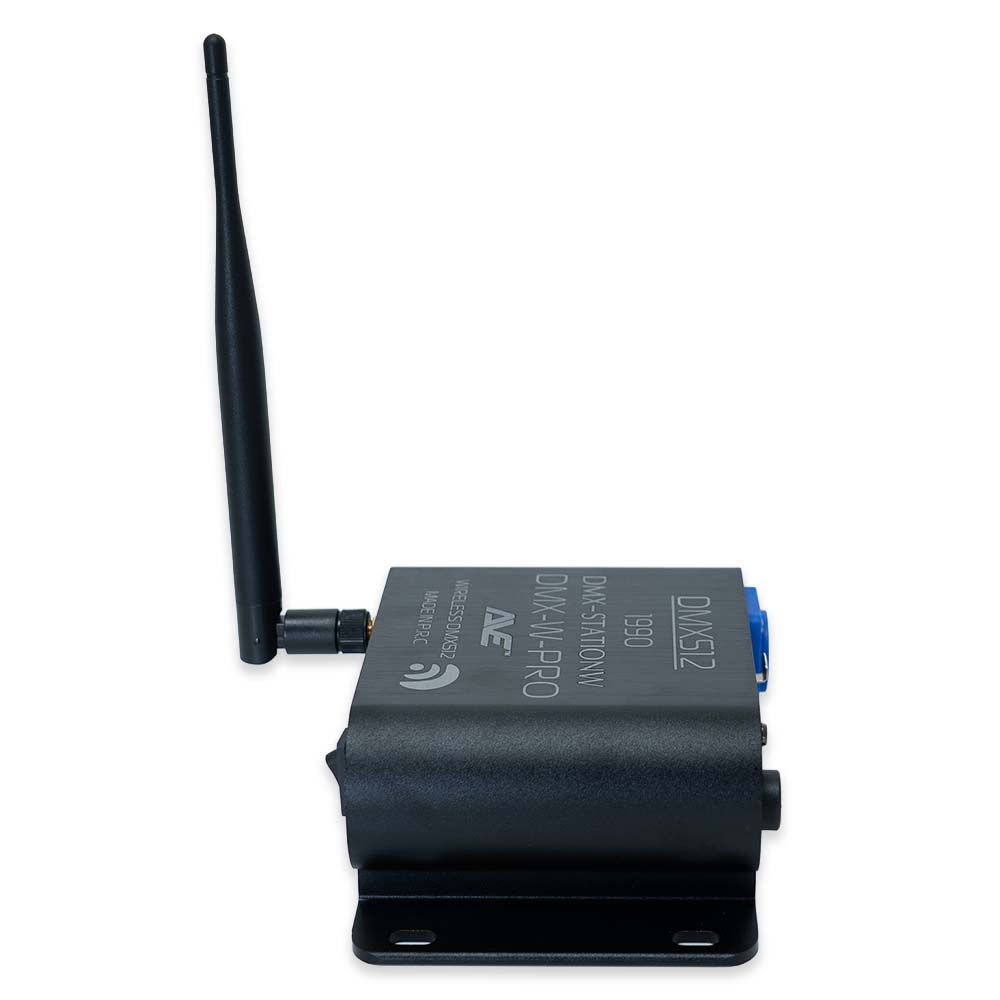

DMX-STATIONW Wireless DMX512 Transmitter / Receiver
AVE DMX-STATIONW removes the need for cable runs between a lighting console and fixtures. Or between fixtures, while maintaining real-time DMX512 control. It keeps wireless lighting links straightforward to set up and monitor. This is through frequency hopping, standard 3-pin XLR connections and a clear LED status system.
Cut Cable Runs Across the Venue
Firstly, use the transmitter at the console and the receiver at a fixture to send DMX512 lighting control data wirelessly. The system suits large-scale live shows, architectural lighting, stadiums, TV studios, conference centres. Also, theatres, clubs and temporary stage setups wherever DMX512-1990 fixtures are used.
Keep Communication Steady
Moreover, 79-channel frequency hopping at 1,100 hops per second is paired with an auto-restart timer and built-in watchdog timer. Together with the 32-bit ARM processor and DMA real-time data transfer, these features support interference-resistant communication. On top of that, signal timing comparable to a wired connection.
Know the Link at a Glance
The tri-color LED makes operating status easy to read during setup and use. Blue indicates W-DMX transmission, green indicates reception and solid white shows standby or holding state. Pairing, clearing links, forming a new wireless group and factory reset are handled with the FUNCTION control.
Build Flexible Wireless Groups

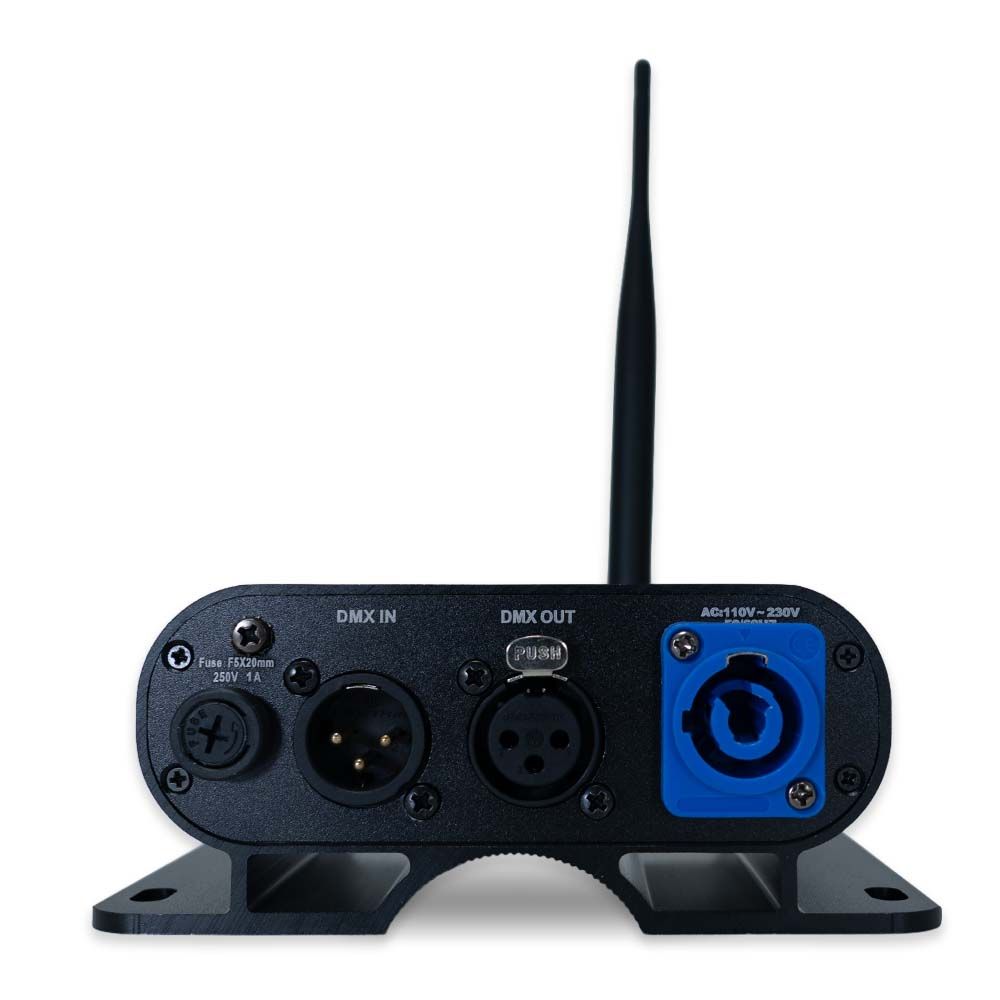

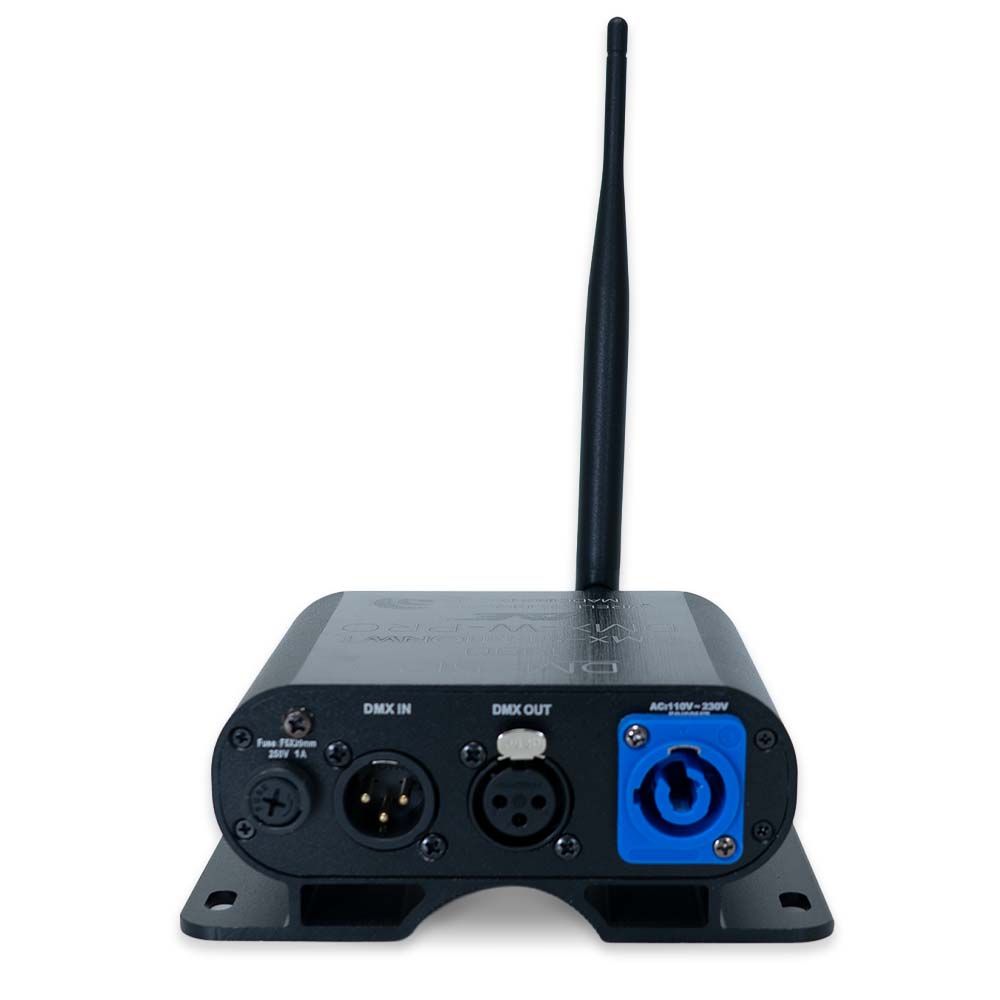

The system supports multiple wireless groups within a 500 m area without mutual interference, while its communication range reaches up to 500 m in open, line-of-sight conditions. Standard 3-pin XLR connections keep the transmitter and receiver workflow familiar, and interoperability with Swedish wireless DMX solutions broadens system options.
Key Features
- Removes DMX cable runs between consoles and fixtures
- Frequency hopping supports interference-resistant wireless communication
- Real-time data transfer keeps control timing comparable to wired operation
- LED colours make transmission, reception and standby status easy to identify
- Multiple wireless groups can operate within 500 m without mutual interference
