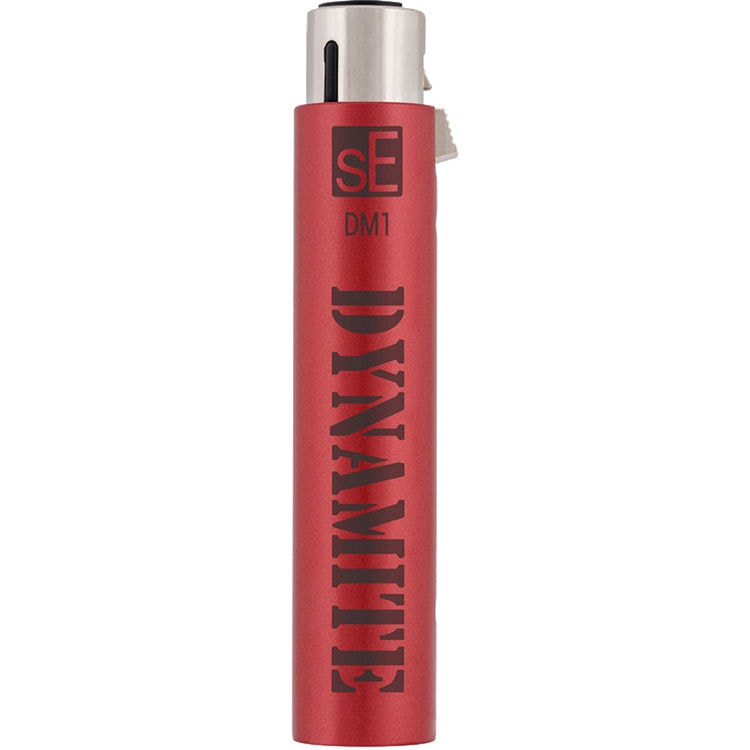

sE Electronics DM1 Dynamite Microphone Pre-amp (OPEN BOX)

$110$179Save $69 (38.6%)
SKU: BS-1130038 Categories: , , ,

Open Box Condition Report

Condition: No Scratches | Working ok Original Box: Original Box - Like new
Comments: Open Box, Looks New Accessories:

sE Electronics DM1

sE Electronics DM1 Dynamite Microphone preamplifier from sE Electronics is an active inline preamp intended to be inserted between a passive ribbon or dynamic microphone and a microphone preamplifier (sold separately). It can be used to deliver a robust 28 dB of gain to boost the audio signal of a passive mic, which improves the level to a preamplifier without adding noise or coloration.

With a sophisticated class-A design and high-grade FETs, the DM1 has a low self-noise. It is built with a dedicated output buffer amplifier allowing it to drive long cable runs and reduce RF interference, buzz, and hum. Additionally, the DM1 Dynamite Active Inline Microphone Preamplifier offers a roadworthy, slim, all-metal design ensuring reliable operation for on-stage applications in difficult environments.

Please Note: This product is not suitable for phantom-powered microphones

Discontinued

Discontinued Products

Please note: This product has been discontinued.

Seen a cheaper price elsewhere?
We'll match it!
Price Match
Price Match
Free Shipping
Free Shipping
This item comes with free shipping. Shipping fees may apply to other products.
Pay in 4 interest-free payments of $. More info
Pay /mth for 12 months interest free. Fees apply.

sE Electronics DM1

sE Electronics DM1 Dynamite Microphone preamplifier from sE Electronics is an active inline preamp intended to be inserted between a passive ribbon or dynamic microphone and a microphone preamplifier (sold separately). It can be used to deliver a robust 28 dB of gain to boost the audio signal of a passive mic, which improves the level to a preamplifier without adding noise or coloration.

With a sophisticated class-A design and high-grade FETs, the DM1 has a low self-noise. It is built with a dedicated output buffer amplifier allowing it to drive long cable runs and reduce RF interference, buzz, and hum. Additionally, the DM1 Dynamite Active Inline Microphone Preamplifier offers a roadworthy, slim, all-metal design ensuring reliable operation for on-stage applications in difficult environments.

Please Note: This product is not suitable for phantom-powered microphones

  • For Passive Ribbon or Dynamic Microphone
  • Provides 28 dB of Gain
  • Class-A Design
  • Low Self-Noise
  • Requires Phantom Power

Input: Passive microphone (ribbon/dynamic)

Output: Preamp/mixer or audio interface providing 48 V phantom power

Limitations: Not suitable for phantom-powered microphones (condenser microphones, active ribbon microphones)

Frequency Range: 10 Hz to 120 kHz (-0.3 dB)

Gain: 28 dB (load 1 kOhm)

Maximum Output Level: 8.3 dBV /2.6 V (0.5% THD)

Output Noise Level: 9 μV (JIS-A)

Powering: 48 V according to IEC 61938

Impedance: 135 Ohms

Load Impedance: >1 kOhm

Current Consumption: 3.0 mA

Connector: 3-pin male/female XLR

Dimensions: 1.91 x 9.55 cm

Weight:  79.9 g

For more information, please visit the manufacturer's website.
